| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Voltage: | 220V |
| Brand Name: | Kineen |
| Condition: | New |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

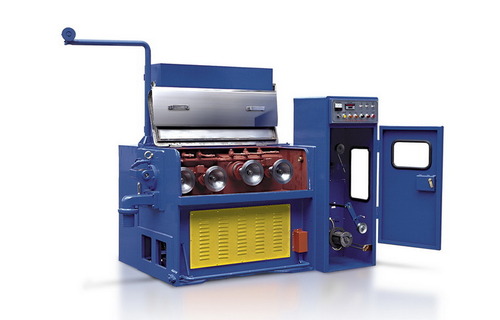

| Fine wire drawing machine | ||
| Specification | ||
| Machine Mode | B24 | B22 |
| Inlet Wire(mm) | Φ1.2-0.8 | Φ1.8-0.55 |
| Outlet Wire(mm) | φ0.35-0.08 | φ0.2-0.05 |
| No.of dies | 24 | 22 |
| Machinical Reduction | 13% | 11% |
| Max.Speed(m/min) | 2500 | 2500 |
| Lubricant Type | Spray | Spray |
| No.of Drawing dies | 5 | 3 |
| Trassmission Type | Flat belt | Flat belt |
| Bearing Lubricant type | Splash Lubrication | Splash Lubrication |
| Take-up Capacity | 40-70kg | 40-70kg |
| Take-up Type | Expansion shaft | Expansion shaft |
| Brake | Magnetic brake | Magnetic brake |
| Tension Control | Dual Frequency conversion with PID control | Dual Frequency conversion with PID control |
| Traversing Method | Reversing Motor | Reversing Motor |
| Total Installed power | AC380V 20HP | AC380V 20HP |
| Machine Dimension(mm) | 1760*1200*1680 | 1760*1200*1680 |
| Machine Weight(kg) | 2000 | 2000 |
| CCA fine wire drawing machine | ||
| Specification | ||
| Machine Mode | B24J | B22J |
| Inlet Wire(mm) | ?1.00-?0.80 | ?0.55-?0.25 |
| Outlet Wire(mm) | ?0.35-?0.25 | ?0.20-?0.10 |
| No.of dies | 24 | 22 |
| Machinical Reduction | 10.5% | 10.5% |
| Max.Speed(m/min) | 1800 | 1500 |
| Lubricant Type | Semi-immersion and sprayed | Semi-immersion and sprayed |
| No.of Drawing dies | 5 | 5 |
| Trassmission Type | Flat belt | Flat belt |
| Bearing Lubricant type | Splash Lubrication | Splash Lubrication |
| Take-up Capacity | 15-40kg | 15-40kg |
| Take-up Type | Expansion shaft | Expansion shaft |
| Brake | Magnetic brake | Magnetic brake |
| Tension Control | Dual Frequency conversion with PID control | Dual Frequency conversion with PID control |
| Traversing Method | Reversing Motor | Reversing Motor |
| Total Installed power | AC380V 15HP | AC380V 15HP |
| Machine Dimension(mm) | 1760*1200*1680 | 1760*1200*1680 |
| Machine Weight(kg) | 2000 | 1800 |
| Coating-tin fine wire drawing machine | |
| Specification | |
| Machine Mode | B24X |
| Nlet Wire(mm) | ?1.60-?0.55 |
| Outlet Wire(mm) | ?0.35-?0.16 |
| No.of dies | 24 |
| Machinical Reduction | 12% |
| Max.Speed(m/min) | 1600-2300 |
| Lubricant Type | Semi-immersion and sprayed |
| No.of Drawing dies | 5 |
| Trassmission Type | Synchronous belt |
| Bearing Lubricant type | Lubricating grease |
| Take-up Capacity | 15-40kg |
| Take-up Type | Single shaft |
| Brake | Magnetic brake |
| Tension Control | Dual Frequency conversion with PID control |
| Traversing Method | Reversing Motor |
| Total Installed power | AC380V 20HP |
| Machine Dimension(mm) | 1760*1200*1680 |
| Machine Weight(kg) | 2000 |
| CCS Stainless steel fine wire drawing Machine | |
| Specification | |
| Machine Mode | B22G |
| Inlet Wire(mm) | ?1.00-?0.80 |
| Outlet Wire(mm) | ?0.30-?0.08 |
| No.of dies | 22 |
| Machinical Reduction | 15% |
| Max.Speed(m/min) | 1600-2300 |
| Lubricant Type | Semi-immersion and sprayed |
| No.of Drawing dies | 5 |
| Trassmission Type | Synchronous belt |
| Bearing Lubricant type | Lubricating grease |
| Capcity of take-up | 15-40kg |
| Take-up Type | Expansion shaft |
| Brake | Magnetic brake |
| Tension Control | Computer Automatic tracking control |
| Traverse Method | Reversing Motor |
| Total Installed power | AC380V 20HP |
| Machine Dimension(mm) | 1760*1200*1680 |
| Machine Weight(kg) | 2000 |
