Characteristics

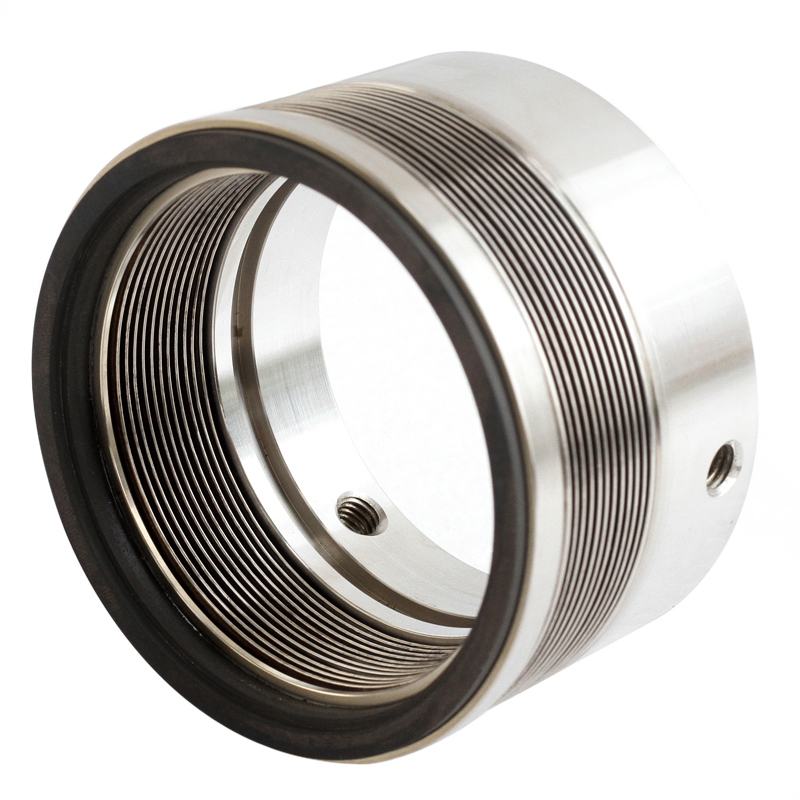

Type: Bellows mechanical seal

Pressure: -0.1~2.5MPa

Temperature: -75~400℃

Linear speed: less than 30m/s

Size: 25~105mm

Medium: high viscosity media, major solid particles Allowed. Corrosive media (strong base and salt, etc.) are available when it Reaches 150℃.

Material: Stainless steel, carbon, metal, graphite

Product Application: for chemical industry/ pumps

Design structure:

Single Face and bellows structure

the Structure is simple, the load of the end face is uniform, and the rotation Direction is not limited

Bellows Is a stationary part, and the fixed position of the bellows can be floated to Ensure that the surface of the bellows is matched with the rotating end face

Auxiliary Seal ring is a flexible graphite gasket or PTFE pad.

Good Wear-resistance for the friction pair

 Competitiveness:

 High-performance, Competitive price, prompt delivery and best service

 Longer Service life and low energy consumption

 Can Be customized according to customer's requirement

 More Than 20 years' designing and manufacturing experience

 More Than 20 years' vendor of Sinopec and PetroChina

 Get the ISO9001, ISO14000 and ISO18000 certificate

 Awarded A number of utility patents in researching and designing seals
