| Machine Type: | Industrial Washer |
|---|---|
| After-sales Service Provided: | Overseas third-party support available |
| Dimension(L*W*H): | Judge from items |
| Power(W): | Judge from items |
| Material: | stainless steel |
| Industry Used: | Electronic Industry |
| Cleaning Type: | |
| Cleaning Process: | |
| Use: | |
| Model Number: | M2-M125 |
| Brand Name: | RBO |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Material: | Spring Steel&Stainless Steel |
Quick Details
Specifications
Basic information
Name |
DIN6796 Metric conical Spring washer for screw connection |
Material |
Spring Steel: 65Mn Stainless Steel: SS304,SS316 |
|
M2-M125, or non-standard as request&design |
Finish |
Plain,Zinc plated,
Nickel plated, Chrome plated, Passivation, Oxidation, Anodization, |
Head Type |
Flat or Spring Washer |
Standard |
DIN6796 or non-standard as request&design |
Non-standards |
OEM is available if you Provide a drawing or sample. |
Samples |
Samples are free. |
Package |
Bulk in master cartons, then on pallets, or according to customers' requirement. |
Payment |
L/C or T/T (30% in Advance and 70% against the copy of BL) |
Place of Origin |
Suzhou, Jiangsu, China |
Web |
> |
DIN6796 Dimension
| DIN6796 | ||||||
| Dimensions | D | d | t | H max | H min | Kilo/1000 pcs |
| M2 | 5 | 2.2 | 0.4 | 0.6 | 0.5 | 0.05 |
| M2.5 | 6 | 2.7 | 0.5 | 0.72 | 0.61 | 0.09 |
| M3 | 7 | 3.2 | 0.6 | 0.85 | 0.72 | 0.14 |
| M3.5 | 8 | 3.7 | 0.8 | 1.06 | 0.92 | 0.25 |
| M4 | 9 | 4.3 | 1 | 1.3 | 1.12 | 0.38 |
| M5 | 11 | 5.3 | 1.2 | 1.55 | 1.35 | 0.68 |
| M6 | 14 | 6.4 | 1.5 | 2 | 1.7 | 1.42 |
| M7 | 17 | 7.4 | 1.75 | 2.3 | 2 | 2.51 |
| M8 | 18 | 8.4 | 2 | 2.6 | 2.24 | 3.1 |
| M10 | 23 | 10.5 | 2.5 | 3.2 | 2.8 | 5.13 |
| M12 | 29 | 13 | 3 | 3.95 | 3.43 | 12.35 |
| M14 | 35 | 15 | 3.5 | 4.65 | 4.14 | 21.44 |
| M16 | 39 | 17 | 4 | 5.25 | 4.58 | 30.19 |
| M18 | 42 | 19 | 4.5 | 5.8 | 5.08 | 38.68 |
| M20 | 45 | 21 | 5 | 6.4 | 5.6 | 48.52 |
| M22 | 49 | 23 | 5.5 | 7.05 | 6.15 | 63.07 |
| M24 | 56 | 25 | 6 | 7.75 | 6.77 | 92.3 |
| M27 | 60 | 28 | 6.5 | 8.35 | 7.3 | 112.13 |
| M30 | 70 | 31 | 7 | 9.2 | 8 | 168.92 |
| M33 | 76 | 34 | 7.5 | 10 | 8.5 | 213.52 |
| M36 | 83 | 37.2 | 8 | 10.5 | 9.2 | 271.39 |
| M42 | 96 | 43.5 | 8.5 | 12 | 10.5 | 383.61 |
| M48 | 110 | 49.5 | 9 | 12.5 | 11 | 535.18 |
| M56 | 128 | 58 | 9.5 | 13.5 | 12 | 762.21 |
| M64 | 136 | 66 | 10 | 14 | 12.8 | 871.34 |
| M72 | 145 | 74 | 10.5 | 15 | 13 | 1006.08 |
| M90 | 160 | 92.5 | 11 | 16 | 14 | 1155.31 |
| M100 | 180 | 102.5 | 11.5 | 17 | 15 | 1551.52 |
| M125 | 220 | 128 | 12 | 19 | 16.5 | 2367.49 |
| Materials | Our Advice for you below: |
| Spring Steel: 65Mn | ≤200°C, under Normal Condition |
| Stainless Steel: SS304, SS316 | ≤300°C, under Corrosive Condition |
| Customized as Per Clients' Requirements |

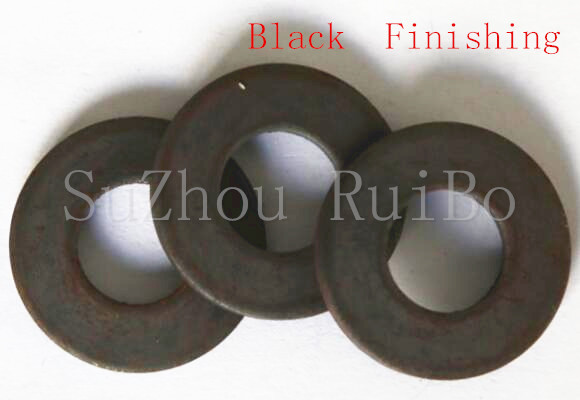

Plated Zinc, Dacromet,Geomet,Black Finishing
