Operating conditions

Pressure: 0~2.0MPa

Temperature: 0~200℃

Speed: 3000 r/min

Shaft Size: 18~300mm

Medium: various salt Solutions, molten urea, phosphoric acid slurry, the dyeing Liquid, slurry, liquid medicine and soluble granules Medium; pulp, fiber slurry medium.

Material: Stainless steel, rubber, graphite,Carbide

Design features:

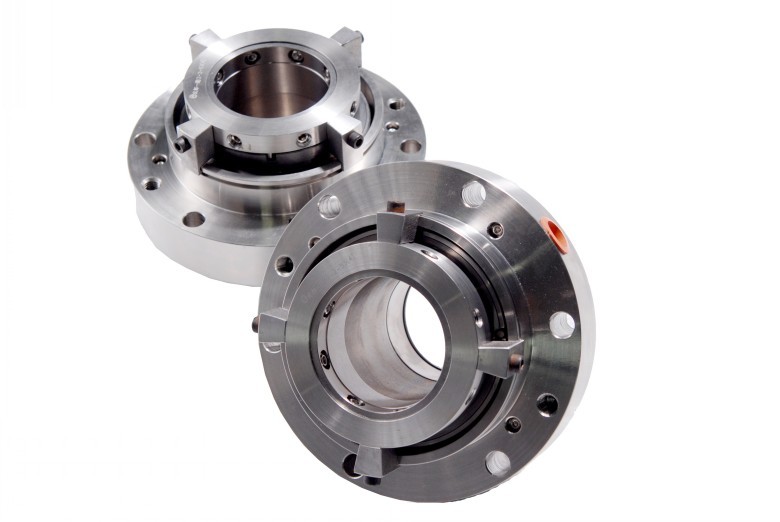

Double End face mechanical seal, on-site installation is very simple.

Medium end of the elastic component does not contact with the media, can Effectively prevent clogging impurities; friction and wear of materials with good performance for the group.

both Ends of the multi spring structure, short axial Dimensions, medium side adopts Double balanced structure, the flushing water pressure is Higher than the medium pressure is the double end blocking Seal, effectively prevent the medium leakage.

Flushing Water is lower than the medium pressure for the tandem Seal, can improve the level of sealing lubrication and Taking friction heat.

Competitiveness:

High-performance, Competitive price, prompt delivery and best service

Longer Service life and low energy consumption

Can Be customized according to customer's requirement

More Than 20 years' designing and manufacturing experience

More Than 20 years' vendor of Sinopec and Petro China

Get the ISO9001, ISO14000 and ISO18000 certificate

Awarded A number of utility patents in researching and designing seals
