Product Main

Quick Details

Pressure: High Pressure
Standard or Nonstandard: Standard
Power: Hydraulic
Structure: Diaphragm Pump
Brand Name: Kingda
Model Number: BZ-103T
Place of Origin: China (Mainland)
Certification: Other
Type: Other

Specifications

Characteristics ofHigh pressure water pump for edm drilling machine

Characteristics ofHigh pressure water pump

the motor directly drives the three cylinder plunger pump, compact structure, small volume,
Light weight, reliable work, low noise;

Adopting modern new material, fine ceramic plunger, because of its high hardness and smooth surface,
so wear almost not in actual use;

Low flow, without reducing equipment that the output flow rate was low, and water saving;

 the design of water lubrication mechanism, instead of the device on the plunger to add the butter,
and can make the leakage from the main sealing of small amounts of water return water pipe,
Can achieve no leakage;



this machine is designed for electric spark perforation Jichong except metal chips and design;

Small Hole Drilling EDM

Mechanical Features

1.It can drill small holes on the materials such as stainless steel,

  quenched steel, carbide,copper,aluminum,etc

2.It can drill the deep holes with diameters 0.3mm and depth diameter ratio

  300:1 or above

3.Working speed is 30-60mm depth per minute

4.It can directly drill on oblique and curved surfaces,Is uses tap water

  as working-fluid

5.X,Y axis of worktable are equipped with D.R.O

6.Optional Accessory:being able to assemble Z-axis digital readout system

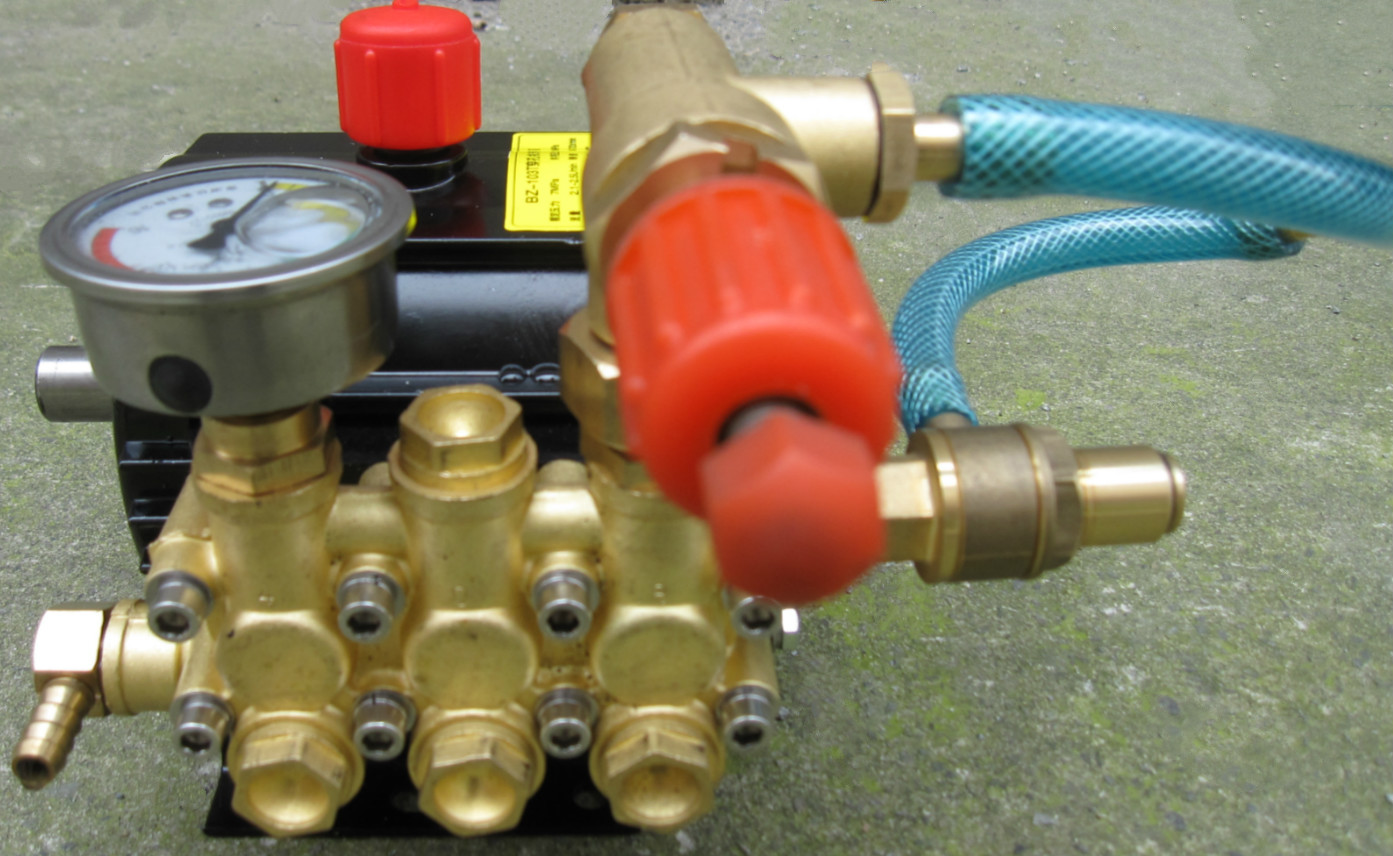

High pressure water pump for edm drilling machine
