| Dimensions: | 170mm *90mm *40mm |
|---|---|
| Model Number: | DX-102 |
| Brand Name: | Dexing |
| Place of Origin: | China (Mainland) |
| Battery:: | low voltage 6V (4pieces of AA batteries) |
| Range:: | 30.0mT, 300mT, 3000mT |
| Accuracy:: | better than 1.0%(full scale) |
| Resolution:: | 0.1mT(1Gs) |
| Weight:: | 450g |
Quick Details
Specifications

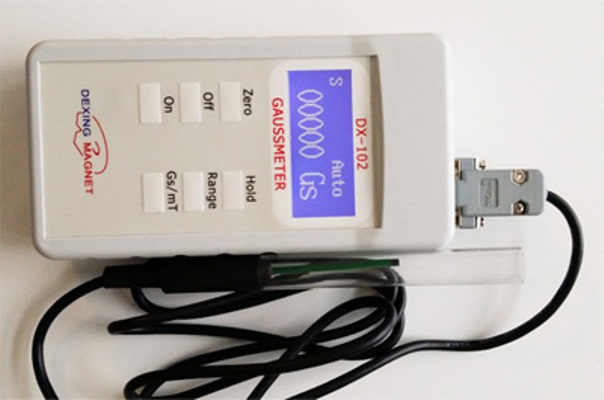

DX-102 Gaussmeter
DX-102 Gaussmeter is a portable gauss meter, based on the latest progress of Hall effect magnetic field measuring instrument, adopted DSP technology. Test probe adopts import GaAs linear Hall chip, the difference between any two probes is small, if damaged, it can be replaced directly. DX-102 Gaussmeter is an ideal DC magnetic field test instrument.
Function:
1. DC magnetic field and magnetic field peak value measurement;
2. Permanent magnet magnetic field distribution measurement;
3. The magnetizing measurement of the permanent magnets;
4. The magnetic field distribution measurement inside the DC coil;
5. The air gap magnetic field measurement of DC electromagnet;
6. Normal DC magnetic field measurement.
