| Place of Origin: | China (Mainland) |
|---|---|
| Model Number: | YSD8000-AP |
| Brand Name: | YSD |
| Type: | Ophthalmic Ultrasound Machine |
Quick Details
Specifications

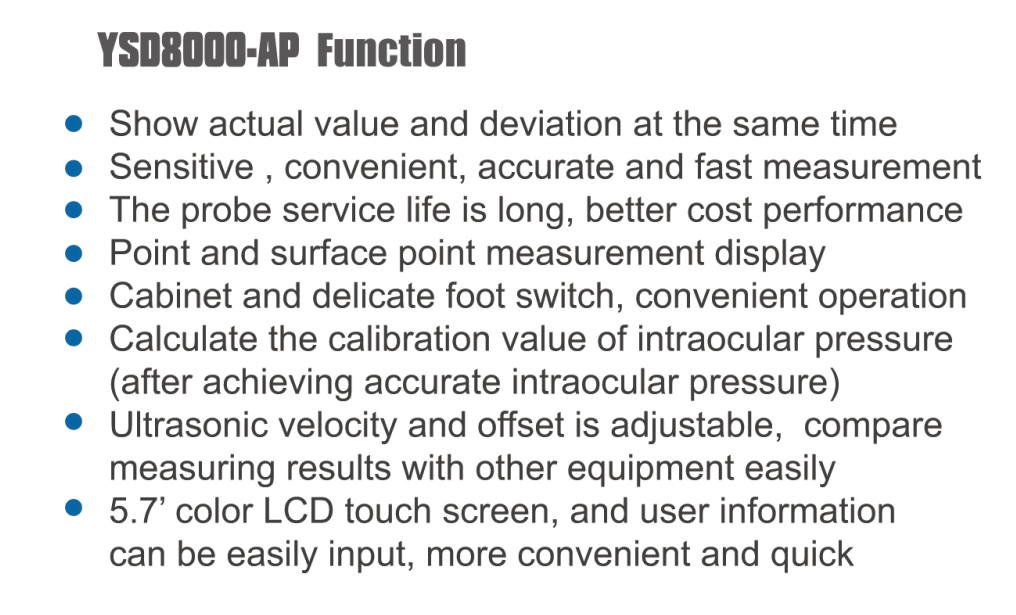

Function
1. Show actual value and deviation at the same time
2. Sensitive, convenient, accurate and fast measurement
3. the probe service life is long, high cost performance
4. Point and surface point measurement display
5. Cabinet and delicate foot switch, convenient operation
6. Calculate the calibration value of intraocular pressure (after achieving accurate intraocular pressure)
7. Ultrasonic velocity and offset is adjustable, compare measuring results with other equipment easily
8. 5.7-inch color LCD touch screen, and user information can be easily input, more convenient and quick
| Standard Configuration | |
| YSD8000-A Biometer only | Main unit; 10.0MHz A probe; Gage block for A-scan / Biometer; Footswitch; Adapter; Touch screen pen |
| YSD8000-P Pachymeter only | Main unit; 20.0MHz angled probe; Gage block for Pachymeter; Footswitch; Adapter; Touch screen pen |
| YD8000-AP Biometer / Pachymeter | Main unit; 10.0MHz A probe; 20.0MHz angled probe; Two kinds Gage block; Footswitch; Adapter; Touch screen pen |
| Power Specification | |
| Power Requirement | AC 100-240V 50-60Hz |
| Rated Input | DC 12V 3.0A |
| Dimension & Weight | |
| Dimension | 200×168×165 (mm, L×W×H) |
| Weight of main unit | Approx. 1.7 kg (Exclude the accessories) |
