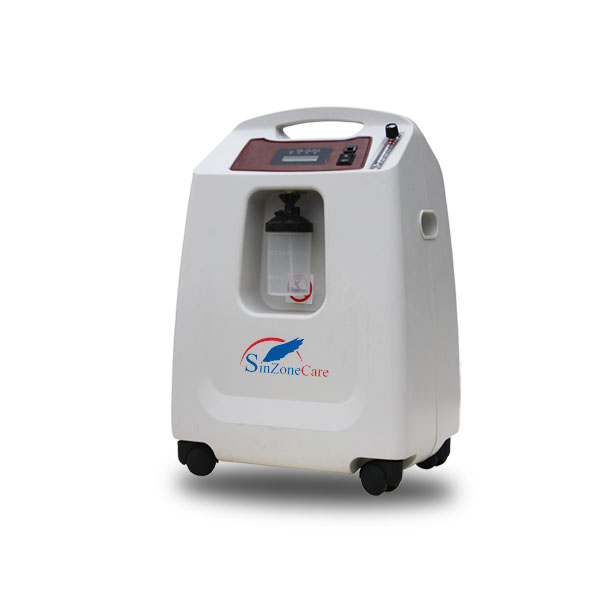

SinZone-8 separates and concentrates oxygen from ambient room air for delivery to a patient requiring higher flow oxygen therapy. Oxygen from the air is concentrated using a process of molecular sieves and a pressure alternating system.
Convenient and lightweight, SinZone-8 eliminates the need to drag around bulky, unmanageable oxygen cylinders and their refill cylinders.

Technical Specifications:

SPECIFICATIONS for DYNMED 5L OXYGEN CONCENTRATOR
Main performance parameters	Oxygen flow:	1--8 LPM	in any setting of 1 to 8ltr
	Oxygen purity:	93%±3%	below 2000m
	Oxygen Output pressure:	0.05-0.07Mpa	/
Visible & audible parameters	Operation noise(dB)	<55dB(A)	/
	Net weight:	19.2kgs	/
	Package Dimensions:	50 x 37 x 71 cm	(L×W×H)
Work condition	Power Supply:	AC 220V±22V/50Hz	or 110V±10V /60Hz
	Power consumption:	<540 W	>480 W
	Operating temp:	5°C--40°C

Accessories	Included	Included	Optional
	Humidifier with connector	Bacteria filter	Low oxygen alarm
	Nasal cannula 1.8m and 3m	Air inlet filter	Nebulizer
	User′s manual	coarse filter	4-way splitter

Main Features:

1. High oxygen purity (AVG: 94%) – optimal solution for COPD, CCVD, high altitude anoxia, respiratory disease, and more

2. Oxygen sensor device – ensures the machine alarm when the oxygen purity is below 82%

3. Filters – oxygen sterilization, dust-removing, oil free and smell removing

4. Humidifier bottle – increases humidity (moisture) of the oxygen in the room as well as includes pressure relief valve.

5. LCD screen –includes visual time accumulated as well as visual alarm system.

6. Suitable range - hospitals, households, clinics, nursing centers.
