SinZoneCare engineering
> Can support customised production
> Can support overseas installation
> Can support long termed after sales technical service

Technical Index
Compressed Air Pressure	0.7-1.3MPa(7Bar-13Bar)
Oxygen Capacity	3 - 200Nm3/h
Oxygen Purity	93%+-2%
Outlet Pressure	0.30MPa(Oxygen Generator)/15MPa(Filling Manifold)
Dew Point	≤-40oC
Electrical Power	~380V/3P/50Hz or Customized

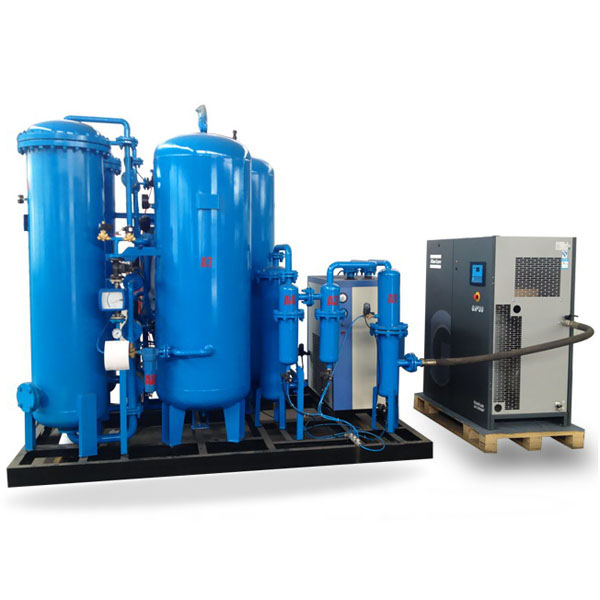

PSA Oxygen Generator Specification
Model	Capacity (Nm3/hr)	Air consumption (Nm3/min)	Inlet (mm)	Outlet (mm)	Air  pretreatment
SZC- 6	6	1.9	25	15	SZ-2
SZC- 10	10	2.8	32	15	SZ-3
SZC- 20	20	5.6	40	20	SZ-6
SZC- 30	30	8.4	50	20	SZ-10
SZC- 50	50	14	65	25	SZ-15
SZC- 80	80	22	65	32	SZ-25
SZC- 100	100	28	80	32	SZ-30
SZC- 150	150	42	100	40	SZ-50
SZC- 200	200	56	125	40	SZ-60



Product Features

1.  Full Automation      All systems are designed for un-attended operation and automatic Oxygen demand adjustment.  2.  Lower Space Requirement     the design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory.          3.  Fast Start-up     Start-up time is about 30 minutes to get desired Oxygen purity. so these units can be switched on & off as per Oxygen demand changes. 4.  High Reliability     It's very reliable for continuous and steady operation with constant Oxygen purity. Plant availability time is better than 93% always. 5.  Zeolite Molecular Sieves Life     Expected Zeolite Molecular Sieves life is more than 10-years i.e. Whole life time of Oxygen plant. so no replacement costs. 6.  Low investment and energy consumption 7.  Simple operation and maintenance
