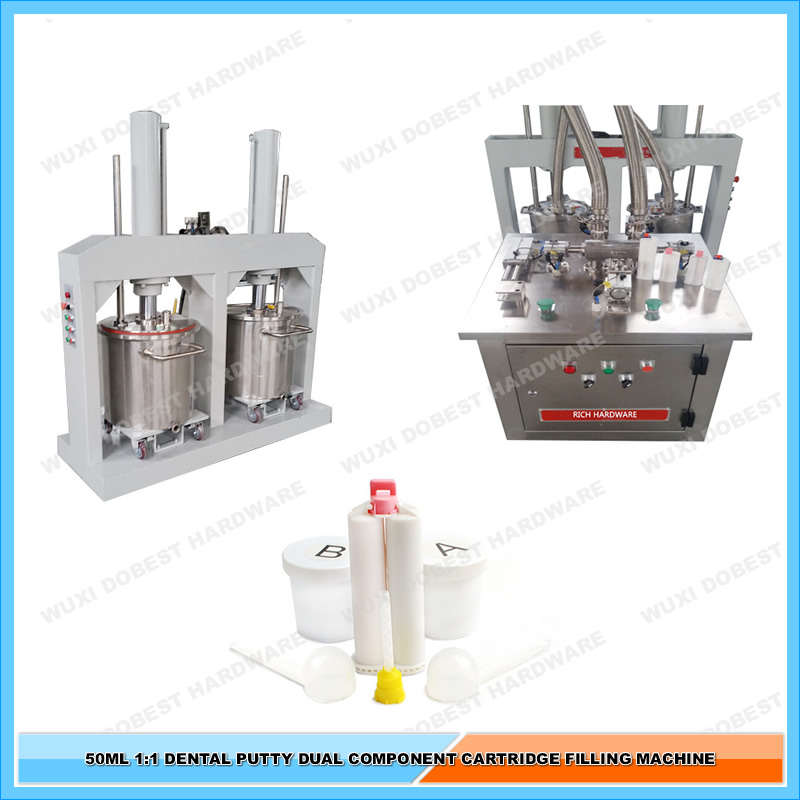

Dental Impression Material Silicone Putty 50ml 1:1 Ratio Dual component Cartridge Filling Machine

   50ML 1:1 Dental Impression Material Filling Machine        400g Plastic Jar Dental Impression Material Filling Machine


1.Brief Introduction:

It is applicable to the filling of ceramic glue,dental material,construction sealant and for special the combination of pressure feeder,the filling result can be guaranteed.



2.Techincal parameters:
Accuracy: 1%

Output:  10pcs/minute
Available range:  4ml-70ml
Power:  AC220v 50hz or customized
Air consumption: 400L/H
Dimension:  700*800*1250mm
Net weight: 100kg

3.Performance features:

It's semi-automatic,the worker have to put the empty cartridge in the machine and take the full cartridge away .

The material be filled into the cartridge by the air pump.
The filling pump need to be " With tube, then filling, no tube, no filling" , it can eliminate errors when filling.
For the total filling volume and filling accuracy, they are adjustable. But due to the single acting cylinder, there would be errors existing for the two tube.
The tube is rising up while filling. There will be no visible bubbles in the material pipe after finish filling.
For the tube's pistons which are without exhaust plug that we use wire to exhaust. And for the tube's pistons which are with the exhaust plug, we will use another way for filling.
For the filling machine, there is a device specially for putting pistons .when there is no piston, the alarm ring, then the device stop operating.
