the following example is for you reference.


1.Brief Introduction:

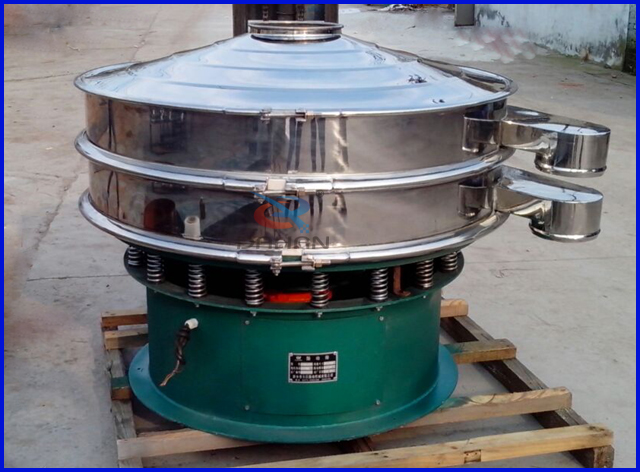

DH series of three-D shaker use the upright motor as the vibration source, both ends of motor install the eccentric weight and the rotary motion of the motor into a horizontal, vertical, inclined three dimensional motion, then the motion is passed to the screen surface. Adjusted upper and lower ends of phase angle can change the trajectory of the sieve surface in.



2.Techincal parameters:



Model	Power (kw)	Sieve diameter (mm)	Granularity (mm)	Voltage (V)	RPM (r/min)	Throughput (kg/h)
-1S DH-400-2S             -3S	0.18	350	<10	380	1500	100
-1S DH-600-2S             -3S	0.25	550	<10			500
-1S DH-800-2S             -3S	0.55	750	<10			800
-1S DH-1000-2S               -3S	0.75	920	<10			1400
-1S DH-1200-2S               -3S	1.1	1120	<10			2100
-1S DH-1500-2S               -3S	1.5	1420	<10			2600
-1S DH-1800-2S               -3S	2.2	1720	<10			3300



3.Performance features:

High efficiency, compact design and durability, any powder and mucilage are suitable.

Change sieve and clean easy, operate simply.

the mesh is not blocked and the powder is not flying, be screened to 500 mesh or 0.028mm.

Impurities coarse material discharged automatically and can continuous operation.

the unique grid design, sieve for a long time, changing sieve fast just need 3-5 minutes.

Small, space-saving, easy to move.

7.the screening machine can achieve the maximum five, we recommended to use three.
