| Model Number: | 1x2 |
|---|---|
| Brand Name: | coreray |
| Place of Origin: | China (Mainland) |
| name: | 1x2 optical switch |
Quick Details
Specifications
Features

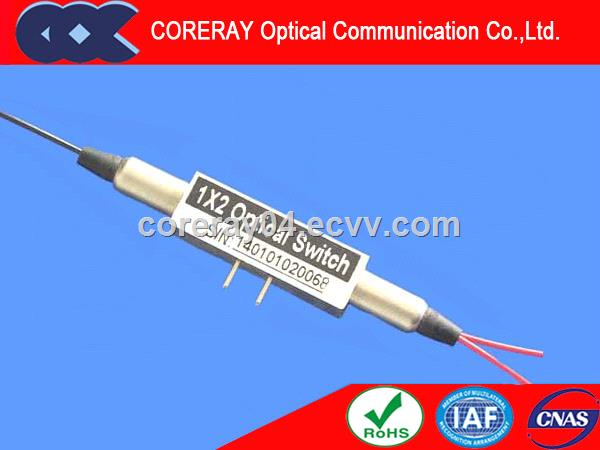

1x2 Solid-State Fiber Optical Switch features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
1x2 Solid-State Fiber Optical Switch Application
Optical Signal Switching and Routing
Optical Network Protection and Restoration
Optical Network Monitoring
Video Distribution
Instrumentation Resource Sharing
Military Communications
1x2 Solid-State Fiber Optical Switch Specification
Parameters |
|
SOSW-1×2 |
Wavelength Range |
nm |
1295~1325,1520~1580 |
Testing Wavelength |
nm |
1310/1550 |
Insertion Loss |
dB |
Typ:0.7 ,Max:1.0 |
Return Loss |
dB |
≥50 |
Channel Cross Talk |
dB |
≥45 |
PDL |
dB |
≤0.10 |
Polarization Mode Dispersion |
ps |
≤0.20 |
TDL |
dB |
≤0.25 |
Power Handling |
mW |
300 |
Switching Speed |
ms |
50~200 |
Repeatability |
dB |
2K |
Operating Temperature |
°C |
-40~+85 |
Storage Temperature |
°C |
-40~+85 |
Dimensions |
mm |
(L)58.2×(W)8.4×(H)8.4(±0.2) |
1x2 Solid-State Fiber Optical Switch Electrical Driving Information
the switch is actuated by applying a voltage pulse. Applying one polarity pulse, one light path will be connected and latched to the position. Applying a reversed polarity pulse, another light path will be connected and latched to the position after pulse removed.
Parameter |
Minimum |
Typical |
Maximum |
Unit |
Driver Voltage |
4.5 |
5 |
5.5* |
V |
Driver Current |
110 |
140 |
195 |
mA |
Pulse Duration |
0.2 |
0.3 |
0.5 |
ms |
Driving kit with USB and TTL interfaces and Windows TM GUI is available. We also offer RS232 interface as an option –please contact coreray sales.
2x1 optical switch
Optical Path |
Pin 1 |
Pin 2 |
Port 2→Port 1 |
5V Pulse |
GND |
Port 3→Port 1 |
GND |
5V Pulse |
1x2 optical switch
Optical Path |
Pin 1 |
Pin 2 |
Port 1→Port 2 |
GND |
5V Pulse |
Port 1→Port 3 |
5V Pulse |
GND |
the typical driver voltage of single stage is 2.5V.
over this value will damage the device.
1x2 Solid-State Fiber Optical Switch Ordering Information:SOSW-1x2-A-B-C-D-E-F-G
A |
B |
C |
D |
E |
F |
G |
Type |
Mode |
Wavelength |
Switch |
Fiber Diameter |
Fiber Length |
Connector |
1x1 1x2 2x1 |
SM:9/125um |
13:1310nm 15:1550nm |
2:dual Stage 0:special |
25:250um 90:900um |
05: 0.5m 10: 1.0m 15: 1.5m |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
