| After-sales Service Provided: | No overseas service provided |
|---|---|
| Warranty: | depend on sample |
| Certification: | depend on sample |
| Weight: | depend on sample |
| Dimension(L*W*H): | depend on sample |
| Power(W): | depend on sample |
| Voltage: | depend on sample |
| Model Number: | PZB |
| Brand Name: | China Coal |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Item: | PZ-5B PZ-7B |
| Max. Aggregate. size: | 20mm |
| Hose inner size: | 51mm 64mm |
| Rotor diameter: | 438mm 480mm |
Quick Details
Specifications
PZB Series Explosion Proofing Shotcrete Machine
Explosion Proofing Shotcrete Machine Price,PZB Series Explosion Proofing Shotcrete Machine Manufacturers,Sales PZB Series Explosion Proofing Shotcrete Machine
PZB Series Explosion Proofing Shotcrete Machine
Advantages:
1.this is a high-effective shotcrete
Machine,which is mainly used for dry-mix, damp-mix shotcreting and steel fiber
Reinforced shotcreting.
2. Nonadhesion going through rotor with new material chamber, completely
Eliminate bonding and blocking during operation so as to reduce clearance and
Maintenance period.
3. Fourpoint clamping device make it easy to adjust the press between sealing
Plate and rotordisk so as to no air and dust leak and prolong consumption parts
Life.,
4. Thin flow conveying method with vortex flow, so the spraying flow is even,
Continuous and steady, to improve the shocrete quality.
Item |
PZ-5B |
PZ-7B |
Output |
5m3/h |
7m3/h |
Max. convey dist |
Horizontal:200m Vertical: 20m |
Horizontal:200m Vertical: 20m |
Water cement ratio |
≤0.4 |
≤0.4 |
Max. Aggregate. size |
20mm |
20mm |
Hose inner size |
51mm |
64mm |
Operating air pressure |
0.4~0.6MPa |
0.4~0.6MPa |
Air consumption |
7-8 m3/min |
8-10 m3/min |
Rotor diameter |
438mm |
480mm |
Motor power |
Y132m-6-5.5(KW) |
Y160m-6-7.5KW |
Voltages |
380v or as your requirement |
380v or as your requirement |
Overall dimension(mm) |
1600X700X1150 |
1600X700X1150 |
Whole weight |
800kgs |
900kgs |

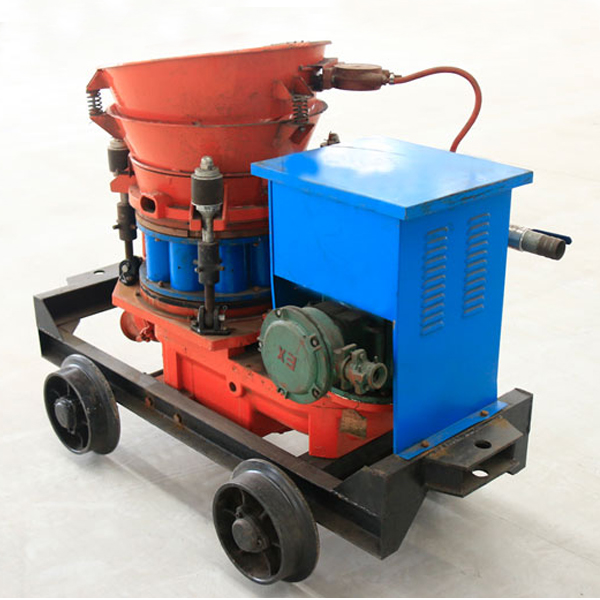

PZB Series Explosion Proofing Shotcrete Machine Photos
