| Model Number: | d2x2b |
|---|---|
| Brand Name: | coreray |
| Place of Origin: | China (Mainland) |

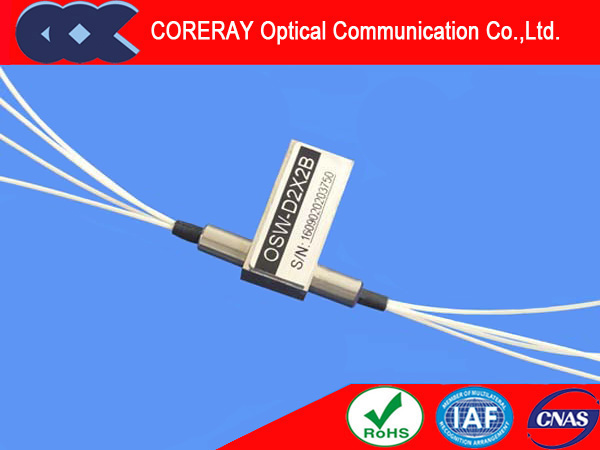

| name: | d2x2b optical switch |
Quick Details
Specifications
D2x2B Fiber Optical Switch Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
D2x2B Fiber Optical Switch Application
· Optical Signal Switching and Routing
· Optical Network Protection and Restoration
· Optical Network Monitoring
· Video Distribution
· Instrumentation Resource Sharing
· Military Communications
Parameters |
|
OSW-D2x2B | |
Wavelength Range |
nm |
650～1310 |
1260～1670 |
Testing Wavelength |
nm |
650/780/850/980/1064/1310 |
1310/1490/1550/1625/1650 |
Insertion Loss |
dB |
Typ:0.6,Max:1.0 |
Typ:0.5,Max:0.8 |
Return Loss |
dB |
≥30 |
≥50 |
Crosstalk |
dB |
≥35 |
≥50 |
PDL |
dB |
≤0.05 | |
WDL |
dB |
≤0.25 | |
TDL |
dB |
≤0.25 | |
Repeatability |
dB |
≤±0.02 | |
Power supply |
v |
3.0 or 5.0 | |
Lifetime |
Cycle |
≥107 | |
Switch Time |
ms |
≤8 | |
Transmission Power |
mW |
≤500 | |
Operation Temperature |
℃ |
-40～+85 | |
Storage Temperature |
℃ |
-40～+85 | |
Weight |
g |
16 | |
Dimension |
mm |
(L)27×(W)12.5×(H)8.2(±0.2) | |
D2x2B Fiber Optical Switch Pins
Optical Path |
Electric Drive |
Sensor Status | |||||
D2X2B |
1 |
5 |
6 |
10 |
3-4,7-8 |
2-3,8-9 | |
Latching |
P1-P3 P1''-P3'' |
N/A |
N/A |
GND |
+5V |
OPEN |
CLOSE |
P1-P4 P1''-P4'' P2-P3 P2''-P3'' |
+5V |
GND |
N/A |
N/A |
CLOSE |
OPEN | |
Non-Latching |
P1-P3 P1''-P3'' |
N/A |
N/A |
N/A |
N/A |
OPEN |
CLOSE |
P1-P4 P1''-P4'' P2-P3 P2''-P3'' |
+5V |
N/A |
N/A |
GND |
CLOSE |
OPEN | |
D2x2B Fiber Optical Switch Electrical parameters
|
Voltage |
Current |
Resistor |
5V Latching |
4.5~5.5 |
36~44mA |
125? |
5V Non-Latching |
4.5~5.5 |
26~32mA |
175? |
3V Latching |
2.7~3.3 |
54~66mA |
50? |
3V Non-Latching |
2.7~3.3 |
39~47mA |
70? |
D2x2B Fiber Optical Switch Ordering Information:OSW-D2x2B-A-B-C-D-E-F-G
A |
B |
C |
D |
E |
F |
G |
Mode |
Wavelength |
Voltage |
Control Model |
Fiber Diameter |
Fiber Length |
Connector |
SM:9/125um M5:50/125um M6:62.5/125um |
85:850nm 13:1310nm 14:1490nm 15:1550nm 162:1625nm 165:1650nm 13/15:1310/1550nm |
3:3v 5:5v |
L:Latching N:Non-Latching |
25:250um 90:900um 20:2.0mm 30:3.0mm |
05: 0.5m 10: 1.0m 15: 1.5m |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
