Quick Details

After-sales Service Provided:	No overseas service provided
Discharge Way:	depend on sample
Working Cycle Period:	depend on sample
Water Supply Mode:	depend on sample
Speed of Mixing Drum:	depend on sample
Reclaiming capacity:	depend on sample
Charging Capacity:	depend on sample
Mixing Power:	depend on sample
Motor Power:	depend on sample
Model Number:	Fm3.5-3
Brand Name:	China Coal
Place of Origin:	China (Mainland)
Condition:	New

Specifications

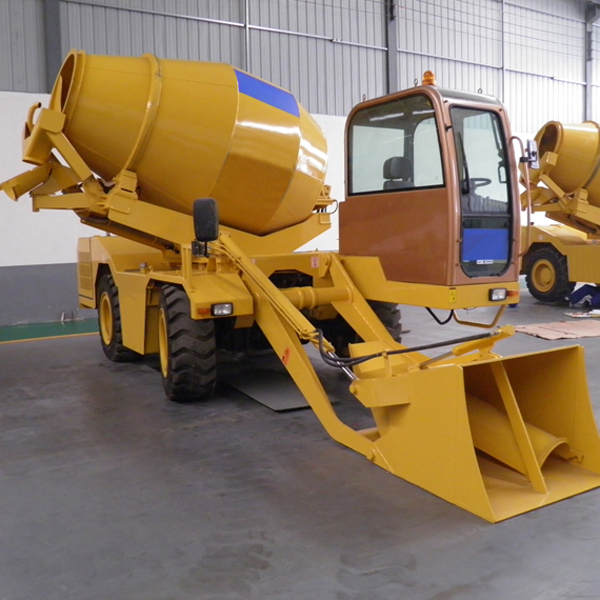

1.Concrete Mixing Station, Mobile Concrete Mixer , Self Loading Mobile Concrete Mixer , 3.5CBM Self Loading Mobile Concrete
Mixer

Fm3.5-3 Mobile Concrete Mixing Station Fm3.5-3 Mobile Concrete Mixing Station Introduction

Fm3.5-3 Mobile Concrete Mixing Station is an On-site construction vehicle that combine feature with concrete batch Processing
Equipment, concrete transport and concrete mixing station. this Cutting edge machine will lead the concrete industry in next
Decade.

Put cement, sand and gravel into the drum and Let the mobile concrete mixing station do the rest.

A small concrete station can easily formed by 2 mobile concrete mixing stations, 1 cement tank and 1 water tank.

Low upfront cost

Reduce transportation cost

Minimize labor cost

Maximize job efficiency

Fm3.5-3 Mobile Concrete Mixing Station Parameter

Mobile concrete mixing station feature Combines self-loading, weighing, mixing and discharging. It can maximize and Improve the
Job efficiency and reduce the production cost and time.

High Efficiency

Capacity:14 cubic meters(18.31 cubic Yards)/hour;

110 cubic meters (143.87 cubic yards)/day;

33000 cubic meters(43,162.44 cubic yards)/year

Labor-saving

4 wheel drive, 4 wheels steering

Accurate Electric Weighing System

the mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides of the vehicle

Loading, Weighing, Pumping, Mixing, Delivering, Discharging

Name	Item	Specification
Vehicle	Net	8800kg
	Gross	16000kg
	Transmission	Hydraulic
		4*4
	Brake	Hydraulic Brake
		Front and Rear Independent System
	Chassis	off Road, China top brand axle
	Distance of Front/Rear Wheelbase	1905mm
	Wheelbase	2155mm
	Loader	Capacity	0.6m3
		Control	Hydraulic
	Tile Angle	30%
	Speed	High	0-20km/h
		Low	0-9km/h
	Min.Turning Radius	6.5m/R
	Tire	16/70-20
	Dimensions(LWH)	701124413310(MM)
Disel Engine	Type	A8QW0
	Rated Power/rpm	85KW/2200rpm
	Max.Torque/rpm	425N.M/1400rpm
	Cylinder	4-cylinder/4.836L
	Bores	108mm
	Cooling Type	Water Cooling
	Fuel Consumption	225g/kw.H
	Starter	Electric
	Emission Standard	China II
Mixing Drum	Drum Capacity	3.5m3,14m3/hr.
	Bank Angle	16°
	Rotation Speed	10-16r/min
	Angle of Drum Rotation	No less than 270°
Chute	Swing Angle	No less than 60°
	Angle Control	Hydraulic
	Size	Long:106cm
		Short:40cm

Mobile Concrete Mixer , Self Loading Mobile Concrete Mixer , 3.5CBM Self Loading Mobile Concrete Mixer, Concrete Mixing
Station

FM3.5-2 Mobile Concrete Mixing Station

Put cement, sand and gravel into the drum and Let the mobile concrete mixing station do the rest. Mobile Concrete mixing station
Is an on-site construction vehicle that combine feature with concrete batch processing
Equipment, concrete transport and concrete Mixing station. this cutting edge machine will lead the concrete industry in
next decade.
