Order No. 66971204

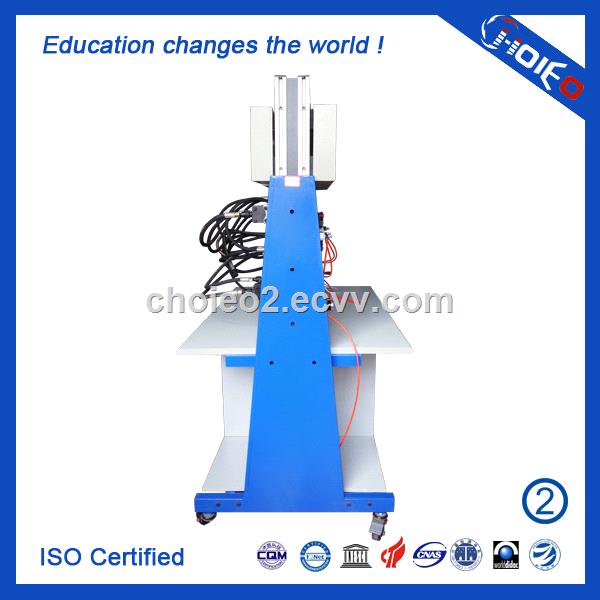

? the PLC controlled advanced electro hydraulic and pneumatic trainer is made up of experimental table,
Frame, industrial hydraulic components, electrical control modules, programmable logical controller
Module, sensors, etc. It integrates various control modes of hydraulic/pneumatic loop, such as PLC
Control, relay control and button control, making it ideal for the teaching and training of hydraulic/pneumatic
Drive and control technology.
? All hydraulic and pneumatic components are mounted with spring baseboard that can be inserted and
Took out easily. the connection of hydraulic components adopts quick coupling without leakage, the
Pneumatic components are connected by high quality air hose with related adapter, which is convenient
and efficient.
? the hydraulic power pack adopts integrated bearing connection method for motor and pump, the oil
Tank is fixed with the pump station, making the hydraulic power supply safe and steady. the pneumatic
Air source is supplied by oil free air compressor, with capacity up to 30L.
? Safety protections: grounded, lead protection, safety in accordance with related GB standards. Insulated
Safety sockets, sheathed cables and wires.

> EXPERIMENTS
Hydraulic Part
? Simple pressure regulating loop
? Multistage pressure regulating loop
? Pressure reducing loop
? Unloading loop of 3-position directional valve
? Unloading loop of pilot overflow valve
? Constant-pressure throttle speed regulating loop (throttle valve)
? Variable-pressure throttle speed regulating loop (throttle valve)
? Constant-pressure speed regulating loop (speed regulating valve)
? Variable-pressure speed regulating loop (speed regulating valve)
? Speed regulating valve short connected speed changing-over loop
? Speed regulating valve series connected speed regulating loop
? Speed regulating valve parallel connected speed changing-over loop
? Differential motion control loop
? One-way blocking loop of hydraulic controlled one-way valve
? Two-way blocking loop of hydraulic controlled one-way valve
? Locking loop of 4/3way directional valve
? Sequential action loop of sequence valve
? Sequential action loop of electrical travel switch
? Sequential action loop of pressure relay
? Synchronizing loop of parallel connected speed regulating valve
? PLC controlled sequential action loop of pressure relay
? PLC controlled sequential action loop of electrical travel switch
Pneumatic Part
? Single Acting Cylinder Reversing Loop
? Double Acting Cylinder Reversing Loop
? Single Acting Cylinder Speed Control Loop
? Double Acting Cylinder One-way Speed Regulation Loop
? Double Acting Cylinder both-way Speed Regulation Loop
? Speed Changing-over Loop
? Buffering Loop
? Twice Pressure Control Loop
? High/Low Pressure Converting Loop
? Counting Loop
? Delay Loop
? Overload Protection Loop
? Interlocking Loop
? Single Cylinder Single Reciprocating Control Loop
? Single Cylinder Continuous Reciprocating Control Loop
? Straight Line Cylinder, Double Acting Cylinder Sequential Action Loop
? Multi-cylinder Sequential Action Loop
? Unloading Loop
? or Gate Type Shuttle Valve Application Loop
? Dual Pressure Valve Application Loop
? Quick Exhaust Valve Application Loop
