| Type: | Slewing Bearing |
|---|---|
| Place of Origin: | China (Mainland) |
| Seals Type: | seals |
| Gear Options: | External Gear Only |
| Feature: | Four Point Contact |
| Model Number: | 061.50.1900.001.49.1504 |
| Outside Diameter: | 1892-3314 mm |
| Bore Size: | 1017-2899 mm |
| Brand Name: | BEART |
| orgine: | china |
| certs: | ISO |
| bearing: | slewing bearing |
Quick Details
Specifications
Slewing rings are large-sized bearings which can accommodate a combined load, i.e. Axial, radial loads and tilting moment. They are usually provided with holes for fixing bolts; internal, external or no gear; and lubrication holes and seals, which allow a compact and economical arrangement. In addition they often enable the elimination of many components necessary in the classical bearing arrangement.

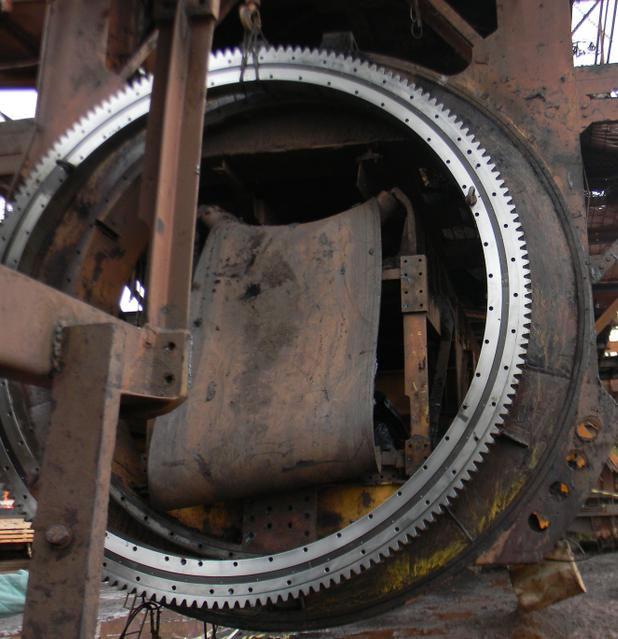

Slewing rings have proven effectiveness in the following applications: construction, mobile and tower cranes, shovel, digging-wheel excavators, revolving grabs and winches, graders, logging industry machines including feller bunchers, loaders, vehicles for waste removal, hydraulic grippers, axles and undercarriages, assembly and access platforms, robots, manipulators and positioners, machine tools, special equipment (rescue vehicles, aerials, feller bunchers and tunnel machines, drilling equipment, wind turbines and cleaning and bottle filling machines).
China slewing bearing manufacturer, slewing ring from china, china best maker of bearing, slewing bearing design for heavy duty machine. Qualified bearing from china, big bearing from china. Chinaslewing bearing maker, big bearing manufacturer from china, china best bearing supplier, slewing ring from china 061.50.1900.001.49.1504, single row ball slewing bearing.
Combining compactness, accuracy, smooth operation with relative high rigidity, together with simple mounting and operation reliability are qualities that allow the use of these bearings in all industrial branches. Designations O.D. I.D. Overall Height Bolt Size Gear P.C.D. Gear Module Number of Teeth Weight kg 061.20.0414.500.01.1503 504 342 56 12 495 5 99 31 061.20.0544.500.01.1503 640.8 472 56 12 630 6 105 43 061.20.0644.500.01.1503 742.8 572 56 12 732 6 122 52 061.20.0744.500.01.1503 838.8 672 56 12 828 6 138 59 061.20.0844.500.01.1503 950.4 772 56 12 936 8 117 71 061.20.0944.500.01.1503 1046.4 872 56 12 1032 8 129 77 061.20.1094.500.01.1503 1198.4 1022 56 12 1184 8 148 91 061.20.0414.575.01.1403 504 343.5 56 12 495 5 99 31 061.20.0544.575.01.1403 640.8 473.5 56 12 630 6 105 43 061.20.0644.575.01.1403 742.8 573.5 56 12 732 6 122 52 061.20.0744.575.01.1403 838.8 673.5 56 12 828 6 138 59 061.20.0844.575.01.1403 950.4 773.5 56 12 936 8 117 71 061.20.0944.575.01.1403 1046.4 873.5 56 12 1032 8 129 77 061.20.1094.575.01.1403 1198.4 1023.5 56 12 1184 8 148 91 061.25.0855.500.11.1503 997.2 755 80 20 981 9 109 141 061.25.0955.500.11.1503 1096.2 855 80 20 1080 9 120 158 061.25.1055.500.11.1503 1198 955 80 20 1180 10 118 172 061.25.1155.500.11.1503 1298 1055 80 20 1280 10 128 190 061.25.1255.500.11.1503 1398 1155 80 20 1380 10 138 204 061.25.1355.500.11.1503 1498 1255 80 20 1480 10 148 222 061.25.1455.500.11.1503 1598 1355 80 20 1580 10 158 236 061.25.0855.575.11.1403 997.2 757 80 20 981 9 109 141 061.25.0955.575.11.1403 1096.2 857 80 20 1080 9 120 158 061.25.1055.575.11.1403 1198 957 80 20 1180 10 118 172 061.25.1155.575.11.1403 1298 1057 80 20 1280 10 128 190 061.25.1255.575.11.1403 1398 1157 80 20 1380 10 138 204 061.25.1355.575.11.1403 1498 1257 80 20 1480 10 148 222 061.25.1455.575.11.1403 1598 1357 80 20 1580 10 158 236 061.25.0764.106.21.1504 862.8 670 82 16 852 6 142 98 061.25.0980.108.21.1504 1078.4 886 79 16 1064 8 133 123 061.20.0400.101.21.1503 499 325 55 12 485 5 97 35 061.20.0450.101.21.1503 554 369 55 14 540 5 108 39 061.20.0560.101.21.1503 670.8 479 55 14 654 6 109 53 061.20.0630.101.21.1503 742.8 543 55 16 726 6 121 61 061.20.0710.101.21.1503 820.8 623 55 16 804 6 134 67 061.25.0764.601.21.1503 886.8 671 63 16 870 6 145 95 061.25.0980.891.21.1503 1110.4 887 63 16 1088 8 136 124 061.25.1120.001.21.1504 1278 1013 79 20 1250 10 125 182 061.25.1250.101.21.1504 1408 1143 79 20 1380 10 138 221 061.30.1180.001.21.1504 1338 1068 79 20 1310 10 131 227 061.30.1320.001.21.1504 1497.6 1208 89 20 1464 12 122 298 061.30.1500.201.21.1523 1677.6 1388 89 20 1644 12 137 338 061.40.1400.001.29.1504 1593.6 1266 94 24 1560 12 130 404 061.40.1600.009.29.1503 1803.2 1466 94 24 1764 14 126 479 061.40.1800.014.29.1503 1999.2 1666 94 24 1960 14 140 531 061.50.1900.001.49.1504 2139.2 1729 109 30 2100 14 150 820 061.50.2130.001.49.1504 2380.8 1959 109 30 2336 16 146 931 061.50.2355.001.49.1504 2604.8 2184 109 30 2560 16 160 1024 061.50.2645.001.49.1504 2892.8 2474 109 30 2848 16 178 1142
