| Max. Power: | 100w |
|---|---|
| Number of Cells: | 36pcs |
| Size: | 1080*808*35mm |
| Material: | Monocrystalline Silicon |
| Model Number: | SK-3100MBG |
| Brand Name: | SOLAR-KEY |
| Place of Origin: | China (Mainland) |
| Frame Type: | Anodized Aluminium Alloy |
| Glass Type: | Tempered, Low Iron |
| Glass Thickness: | 3.2 mm |
| Back Cover Type: | TPT |
| Encapsulant Type: | EVA |
| Connector Type: | MC4 |
| Cable Crosssection: | 4 mm2 |
| Cell Type: | Monocrystalline |
| Cell Size: | 125*125 mm |
| Junction Box: | With TUV certificate |
Quick Details
Specifications

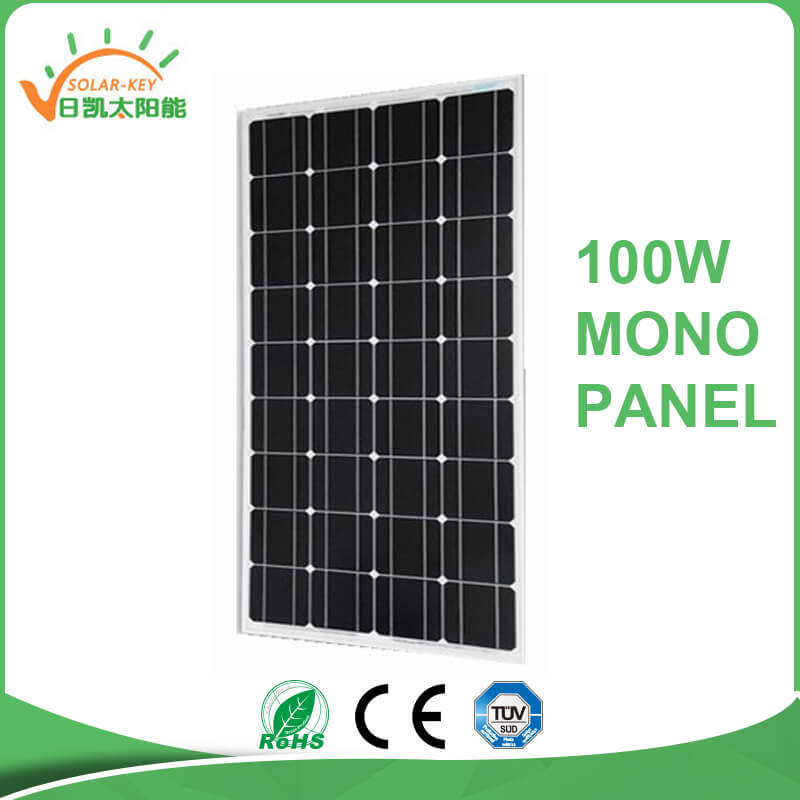

TUV approved Cheap high efficiency 100W Mono Solar Panel PV Module
Product description
- Solar panel strict selection of appearance and electric perfomance before encapsulation
- Excellent effect of solar panel at low light level
- Mono solar module with high transparent tempered glass
- Solar panel made of high quality EVA and back film
- Anodic oxidized aluminum frame and waterproof junction box of solar panel
- Unique process making solar module nice-looking, rugged weather-resistant, and easy to install
Product characteristics
| Model No. | |
|---|---|
| WARRANTY | |
| Power Warranty | 25 Years of 80% Output Power |
| Electrical Data at STC | |
| Maximum Power (Pmax) | |
| Voltage at Maximum Power (Vmpp) | |
| Current at Maximum Power (Impp) | |
| Open Circuit Voltage (Voc) | |
| Short Circuit Current (Isc) | |
| Panel Efficiency |
Mechanical Characteristics:
Size of solar cells(mm) |
125*125 |
Size of Module(mm) |
1080*808*35 |
Number of cells(Pcs) |
36pcs(4*9) |
Weight(Kgs) |
15.5 |
Maximum Load Capacity |
60m/s(200kg/sq.M) |
Maximum System Voltage |
1000V |
Temperature Coefficient:
Temperature coefficient Voc |
-0.38%/°C |
Temperature coefficient Isc |
+0.08%/°C |
Temperature coefficient Power |
-0.6%/°C |
Operating temperature |
-40°C to+ 90°C |
Power Tolerance |
±5% |
Standard Test Conditions |
AM1.5,1000W/m2,25℃ |
FAQ | |
Payment Terms: |
T/T 100% Deposit Advance Based on Sample or Less Than Container Quantity Order. T/T 20% Deposit Advance, Balance after copy of B/L(Based on CIF Terms, Balance Embark Based on FOB Terms)Based on Container Quantity Order. |
Price Terms: |
All the Price Based on FOB Shanghai USD Term. |
Delivery Time: |
15Days after Deposit Based on Container Quantity Order. |
M.O.Q.: |
20KW(20,000watt) |
Brand Name: |
Solar-key |
Quality Guarantee: |
3 Years Product Warranty and 20 Years 90% of Power,25 Years 80%
|
Certificate: |
CE TUV |
Custom Clearance Docs: |
B/L(Bill of Lading), Invoice, Parking List(Ship by DHL Express or Telex Release B/L. |
Why Choose Us |
●Professional Solar Panel manufacturer |
●Equipped with professional R&D team, help customers solve various problem |
●Professional Engineers,strong technical team and advanced production equipments |
●Products has passed CCC,CE authentication |
●Keep a long-term cooperation with each big logistics company to ensure that the goods arrive on time |
●3 years product warranty and 20 years 90% of power,25 years 80% |
●High-efficient solar cell; High transmissivity low-iron toughened glass; Water resistant junction box; Anodized aluminum frame |
