| Model Number: | 2711 |
|---|---|
| Brand Name: | coreray |
| Place of Origin: | China (Mainland) |
| name: | optical switch |
| model: | 1x2 optical switch |
| weight: | 0.015kk |
Quick Details
Specifications

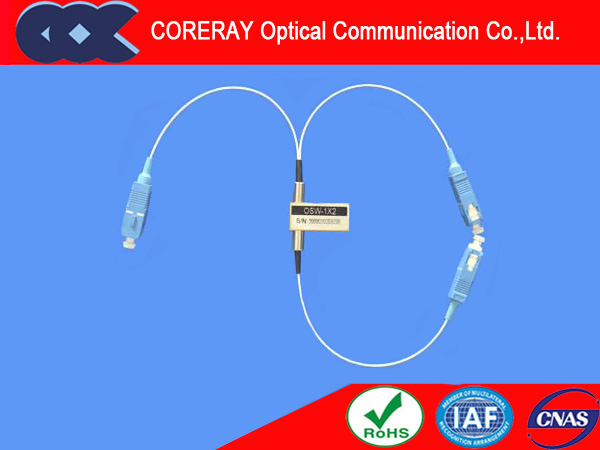

1X2 Optical Switch Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
1x2 Optical Switch Applications
Optical Signal Switching and Routing
Optical Network Protection and Restoration
Optical Network Monitoring
Video Distribution
Instrumentation Resource Sharing
Military Communications
1x2 Optical SwitchSpecifications
Parameters |
|
OSW-1×2 | ||
Wavelength Range |
nm |
650～1310 |
1260～1670 |
|
Testing Wavelength |
nm |
650/780/850/980/1064/1310 |
1310/1490/1550/1625/1650 |
|
Insertion Loss |
dB |
Typ:0.6,Max:1.0 |
Typ:0.5,Max:0.8 |
|
Return Loss |
dB |
≥30 |
≥50 |
|
Crosstalk |
dB |
≥35 |
≥55 |
|
PDL |
dB |
≤0.05 | ||
WDL |
dB |
≤0.25 | ||
TDL |
dB |
≤0.25 | ||
Repeatability |
dB |
≤±0.02 | ||
Power supply |
v |
3.0 or 5.0 | ||
Lifetime |
Cycle |
≥ 107 | ||
Switch Time |
ms |
≤8 | ||
Transmission Power |
mW |
≤500 | ||
Operation Temperature |
℃ |
-40～+85 | ||
Storage Temperature |
℃ |
-40～+85 | ||
Weight |
g |
16 | ||
Dimension |
mm |
(L)27×(W)12.6×(H)8.5(±0.2) | ||
