| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Brand Name: | Sante |
| Usage: | Heat Treatment Furnace |
| Condition: | New |
| Certification: | ISO9001 |
| Dimension(L*W*H): | 600*400*400 mm |
| Voltage: | 380v |
| Model Number: | STD-96-12 |
| Place of Origin: | China (Mainland) |
| Type: | Resistance Furnace |
Quick Details
Specifications
Main features:
1. Furnace chamber made of vacuum-formed Al2O3 ceramic fiber materials, no powder dropping under high temperature.
2. Insulation material with low heat capacity, and high efficiency of energy saving. Dual-layer housing structure. Low temperature in external environment.
3. High heating rate with15~30 c/min.
4. Microcomputer PID control module enables precise temperature control and constant temperature requirement.
5. Temperature controller is programmable with 2 groups/16 segments, and avaiable to set temperature curve.
6. over-temperature alarm: when temperature exceeds the limit value, machine will send out light&sound alarm and stop heating.
7. with electricity leakage protection for safety and reliabity
Specifications:
Options:
1. A large screen paperless recorder, to achieve real-time temperature curve recorded with a memory card of experimental data analysis and printing.
2. Installation of an air intake, which can feed into air and inert gas. An exhaust chimney connecting stainless steel bellows, so that the generate toxic gas emissions to a specified location.
3.OPtional furnace door designs:
a)Side opening door
b) Door moving parallelly to the front face
c) door moving up
Models:

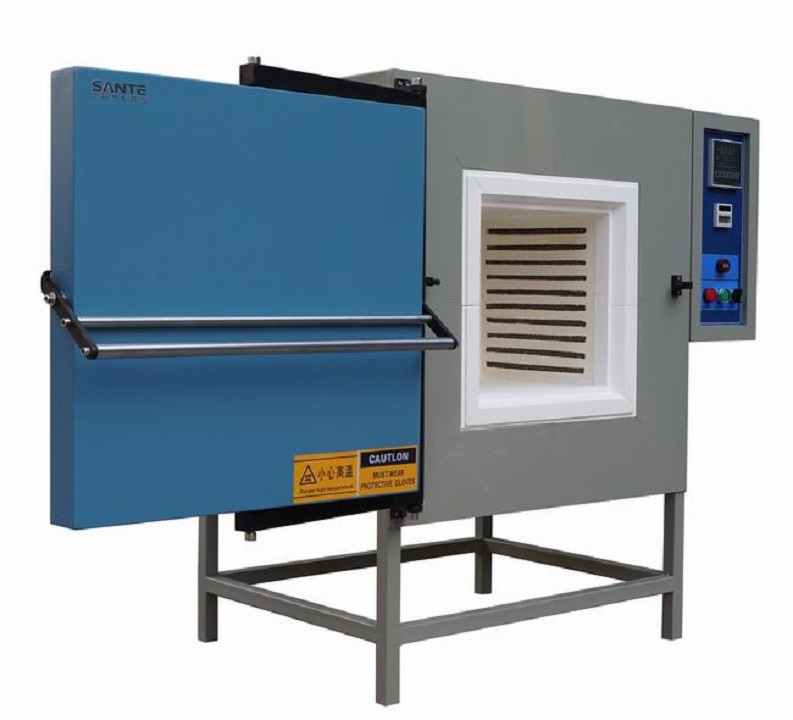

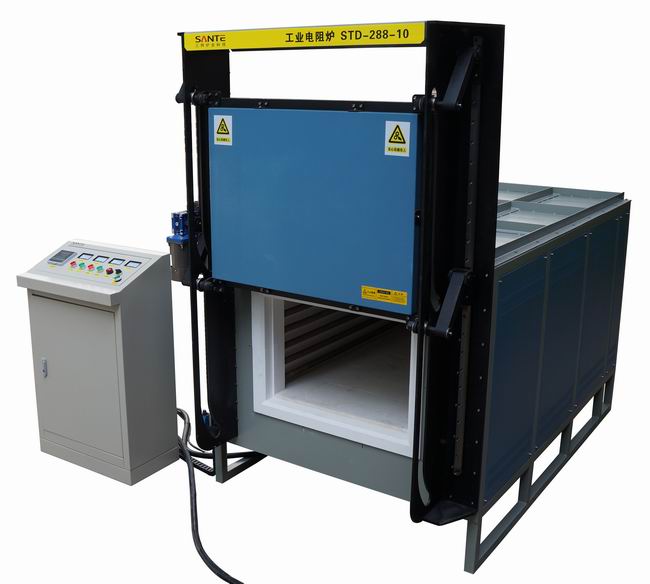

Reference pictures:
1. Furnace chamber made of vacuum-formed Al2O3 ceramic fiber materials, no powder dropping under high temperature.
2. Insulation material with low heat capacity, and high efficiency of energy saving. Dual-layer housing structure. Low temperature in external environment.
3. High heating rate with15~30 c/min.
4. Microcomputer PID control module enables precise temperature control and constant temperature requirement.
5. Temperature controller is programmable with 2 groups/16 segments, and avaiable to set temperature curve.
6. over-temperature alarm: when temperature exceeds the limit value, machine will send out light&sound alarm and stop heating.
7. with electricity leakage protection for safety and reliabity
Specifications:
| Max. Temperature |
1000 c |
| Continous Operating Max. Temperature | 950 c |
| Chamber Size | Size: 400(W)*600(L)*400(H) mm
Capacity: 96 liters |
| Heating Rate | 0~30 c/min |
| Thermocouple | K type |
| Heating Element | Resistance wires |
| Voltage | 380v |
| Temperature Control | SCR controller, PID parameter self-setting |
| Display Accuracy | +/- 1 deg.C |
| Standard Accessories | CrucibLe tong 1pc, high temperature gloves 1 Pair, Al2O3 furnace door stock 1pc |
| Warranty | One year (not including the consuming parts such as heating element) |
1. A large screen paperless recorder, to achieve real-time temperature curve recorded with a memory card of experimental data analysis and printing.
2. Installation of an air intake, which can feed into air and inert gas. An exhaust chimney connecting stainless steel bellows, so that the generate toxic gas emissions to a specified location.
3.OPtional furnace door designs:
a)Side opening door
b) Door moving parallelly to the front face
c) door moving up
Models:
| Model | Volume | Chamber size WLH |
Max. Temperature |
Operating temp. | Voltage | Heating element | Temp. Control accuracy |
| STD-96-12 | 96L | 400600400mm | 1200oC | 1100oC | 380V | Resistant wire | 1oC |
| STD-288-12 | 288L | 600800600mm | 1200oC | 1100oC | 380V | Resistant wire | 1oC |
| STD-640-12 | 640L | 8001000800mm | 1200oC | 1100oC | 380V | Resistant wire | 1oC |
| STD-1200-12 | 1200L | 100012001000mm | 1200oC | 1100oC | 380V | Resistant wire | 1oC |
| STD-2160-12 | 2160L | 120015001200mm | 1200oC | 1100oC | 380V | Resistant wire | 1oC |
