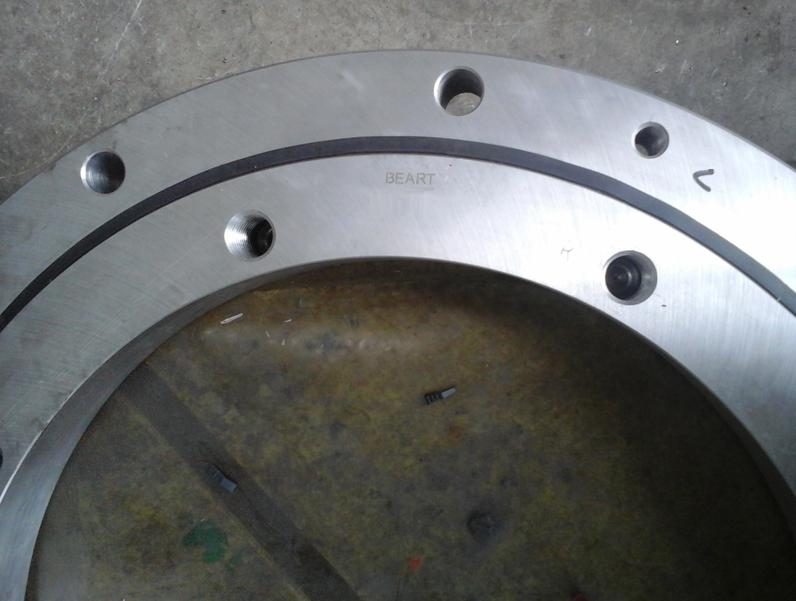

| Type: | Slewing Bearing |
|---|---|
| Place of Origin: | China (Mainland) |
| Seals Type: | seals |
| Gear Options: | Nongeared |
| Feature: | Four Point Contact |
| Model Number: | 9O-1B50-0953-1299 |
| Outside Diameter: | 515-1027 mm |
| Bore Size: | 989-2362 mm |
| Brand Name: | BEART |
| material: | 100Cr6 |
| structure: | four point contact ball |
| gear: | without |
Quick Details
Specifications
Slewing rings are large-sized bearings which can accommodate a combined load, i.e. Axial, radial loads and tilting moment. They are usually provided with holes for fixing bolts; internal, external or no gear; and lubrication holes and seals, which allow a compact and economical arrangement. In addition they often enable the elimination of many components necessary in the classical bearing arrangement.
Slewing rings have proven effectiveness in the following applications: construction, mobile and tower cranes, shovel, digging-wheel excavators, revolving grabs and winches, graders, logging industry machines including feller bunchers, loaders, vehicles for waste removal, hydraulic grippers, axles and undercarriages, assembly and access platforms, robots, manipulators and positioners, machine tools, special equipment (rescue vehicles, aerials, feller bunchers and tunnel machines, drilling equipment, wind turbines and cleaning and bottle filling machines).
China slewing bearing manufacturer, slewing ring from china, china best maker of bearing, slewing bearing design for heavy duty machine. Qualified bearing from china, big bearing from china. Chinaslewing bearing maker, big bearing manufacturer from china, china best bearing supplier, slewing ring from china 9O-1B50-0953-1299, single row ball slewing bearing.
Combining compactness, accuracy, smooth operation with relative high rigidity, together with simple mounting and operation reliability are qualities that allow the use of Designation Boundary dimensions (mm) Mass d D T J1 J2 kg 9O-1B22-0163-1038 101.6 223.7 49 203.2 120.65 9.4 9O-1B20-0163-0650 101.6 228.6 49 205.308 120.7 10 9O-1B10-0179-0670 125 234 25 214 144.5 4 9O-1B14-0193-0850-1 126 259 43.95 232 153 9 9O-1B17-0183-1125 130 240 30 220 150 9 9O-1B13-0220-1092 140 300 36 270 170 11.5 9O-1B20-0223-0574 145 300 50 270 175 15 9O-1B25-0279-0428 183 375 63 338 220 33.5 9O-1B22-0260-0884 190 329 45 305 215 15 9O-1B20-0260-0851 191 326 46 305 215 15 9O-1B14-0250-0479 200 300 35 280 220 8 9O-1B20-0289-0295 210 365 40 335 240 20 9O-1B20-0318-0945 232 400 46 375 259 24.5 9O-1B22-0311-1049 235 403.5 55 358 259 26 9O-1B20-0342-0793 265 420 50 390 295 26 9O-1B20-0342-0789 267 418 50 390 295 25 9O-1B25-0378-0401 270 486 63 442 314 50 9O-1B14-0325-1067 270 380 35 360 290 12.5 9O-1B25-0380-0852 275 485 55 453 307 45 9O-1B20-0386-1320 314 457 48 430 341 27.5 9O-1B25-0422-0485 323.6 520.29 54.1 479.425 365.125 46.5 9O-1B25-0422-1200 323.6 520.2 54.1 479.425 365.125 47.5 9O-1B25-0422-0564 323.8 520.3 53.8 479.425 365.125 46 9O-1B35-0430-0537 330 530 85 495 365 67 9O-1B30-0446-1217 333 558 72 514 377 65.5 9O-1B20-0405-0387 336 474 46 450 360 25 9O-1B20-0414-1087 342 486 56 460 368 30 9O-1B25-0475-0204 384 562 59 530 420 40 9O-1B30-0490-0377 400 580 70 550 430 57 9O-1B45-0559-1350 435 721.4 87.3 644.5 473.1 138 9O-1B32-0548-1361 441.5 654 84 619.1 476.3 92 9O-1B32-0550-0418 450 650 75 615 485 69 9O-1B22-0530-1019 460 600 45 575 485 37 9O-1B32-0580-0342 460 699 72 655 504 93 9O-1B20-0560-1039 482.6 654.1 57.2 604.85 515.92 51.5 9O-1B30-0600-1113 487 712 72 668 531 90 9O-1B40-0635-0550 517 753 88 713 557 110 9O-1B45-0654-0614 521.7 779.5 95.3 738.175 572.567 152 9O-1B25-0640-0355 545 730 68 690 580 73 9O-1B20-0744-0341 634 848 56 820 662 75 9O-1B25-0763-0831 675 851 70 820 705 83.5 9O-1B40-0883-1354 726.4 1041.4 98.6 990.6 787.4 285 9O-1B50-0953-1299 771.7 1133.6 114.3 1060.5 844.5 352 9O-1B20-0844-0565-1 772 916 56 890 798 57 9O-1B13-0854-0313 810 900 40 884 826 27 9O-1B50-0900-0579 745 1065 110 1000 800 290 9O-1B35-0867-1122 753.1 1010.9 82.6 939.8 781.05 188 9O-1B32-0910-0791 803.1 1016 76.2 981.075 838.2 140 9O-1B30-1079-0898 957.6 1200 74 1154 1004 176.5 9O-1B20-1177-0655 1093 1261 67 1231 1123 132 9O-1B50-1200-1239 1040 1360 120 1300 1100 430 9O-1B14-1229-0657 1184.6 1271.98 65 1256 1202 62 9O-1B45-1455-0857 1301 1604 101 1560 1345 430 9O-1B25-1455-1334 1355 1555 63 1515 1395 163 9O-1B40-2000-0980 1884 2116 100 2076 1924 411.5 9O-1B25-2300-0107 2200 2400 73 2360 2240 300 9O-2B16-0134-0605 75 195 70 170 96 9.5 9O-2B20-0268-0702 160 346 88 320 215 35 9O-2B25-0308-0703 212 396 95 365 247 49 9O-2B25-0410-0974 310 510 105 472 348 74
these bearings in all industrial branches.
