| Type: | Slewing Bearing |
|---|---|
| Place of Origin: | China (Mainland) |
| Seals Type: | seals |
| Gear Options: | External Gear Only |
| Feature: | double row ball |
| Model Number: | 011.40.3150.001.41.1502 |
| Outside Diameter: | 2367-8299 mm |
| Bore Size: | 1681-6223 mm |
| Brand Name: | BEART |
| heavy duty: | loading capacity |
| 42CrMo4: | material |
| Q&H: | heat treatment |
| structure: | double row ball |
Quick Details
Specifications

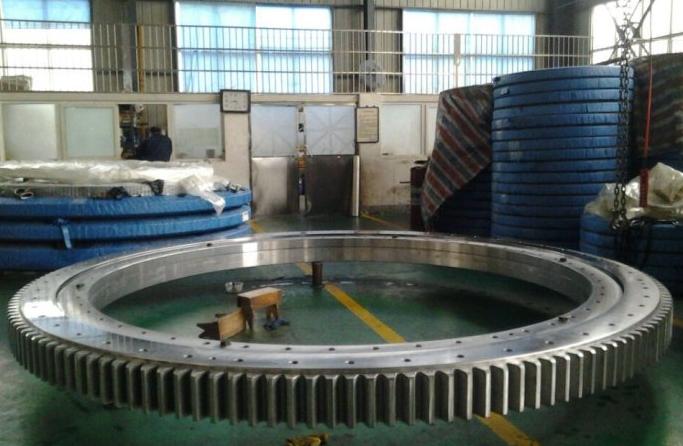

Slewing rings are large-sized bearings which can accommodate a combined load, i.e. Axial, radial loads and tilting moment. They are usually provided with holes for fixing bolts; internal, external or no gear; and lubrication holes and seals, which allow a compact and economical arrangement. In addition they often enable the elimination of many components necessary in the classical bearing arrangement.
Slewing rings have proven effectiveness in the following applications: construction, mobile and tower cranes, shovel, digging-wheel excavators, revolving grabs and winches, graders, logging industry machines including feller bunchers, loaders, vehicles for waste removal, hydraulic grippers, axles and undercarriages, assembly and access platforms, robots, manipulators and positioners, machine tools, special equipment (rescue vehicles, aerials, feller bunchers and tunnel machines, drilling equipment, wind turbines and cleaning and bottle filling machines).
China slewing bearing manufacturer, slewing ring from china, china best maker of bearing, slewing bearing design for heavy duty machine. Qualified bearing from china, big bearing from china. Chinaslewing bearing maker, big bearing manufacturer from china, china best bearing supplier, slewing ring from china 011.40.3150.001.41.1502, double row ball slewing bearing.
Combining compactness, accuracy, smooth operation with relative high rigidity, together with simple mounting and operation reliability are qualities that allow the use of these bearings in all industrial branches. Designations O.D. I.D. Overall Height Bolt Size Gear P.C.D. Gear Module Number of Teeth Weight kg 011.20.0755.001.21.1504 862.8 679 82 16 852 6 142 101 011.20.0971.001.21.1504 1078.4 895 82 16 1064 8 133 128 011.20.1220.001.21.1504 1342.4 1140 82 16 1320 8 165 178 011.20.1385.001.21.1504 1502.4 1305 82 16 1480 8 185 201 011.25.1200.601.21.1503 1378 1100 102 20 1350 10 135 301 011.25.1461.001.21.1503 1648 1360 102 20 1620 10 162 381 011.25.1800.001.41.1503 2001.6 1700 102 20 1968 12 164 488 011.30.1440.191.41.1503 1653.6 1320 120 24 1620 12 135 520 011.30.1734.001.41.1503 1953.6 1615 120 24 1920 12 160 636 011.30.2031.601.41.1503 2253.6 1910 120 24 2220 12 185 755 011.30.2235.001.41.1503 2457.6 2115 120 24 2424 12 202 827 011.35.1750.701.41.1503 1985.2 1620 138 24 1946 14 139 789 011.35.2220.001.41.1503 2461.2 2090 138 24 2422 14 173 1019 011.35.2620.001.41.1503 2876.8 2490 138 24 2832 16 177 1244 011.40.2240.001.41.1502 2524.8 2090 156 30 2480 16 155 1316 011.40.2619.001.41.1502 2912.4 2465 156 30 2862 18 159 1615 011.40.2795.001.41.1502 3096 2645 156 30 3040 20 152 1723 011.40.2915.001.41.1502 3216 2765 156 30 3160 20 158 1790 011.40.3150.001.41.1502 3456 3000 156 30 3400 20 170 1969 011.50.2987.001.49.1502 3290.4 2820 185 30 3240 18 180 2288 011.50.3167.001.49.1502 3470.4 3000 185 30 3420 18 190 2431 011.50.3347.001.49.1502 3650.4 3180 185 30 3600 18 200 2566 011.50.3567.001.49.1502 3866.4 3400 185 30 3816 18 212 2702 011.50.3747.001.49.1502 4046.4 3580.19 185 30 3996 18 222 2837 011.50.4140.001.49.1502 4456 3970 187 30 4400 20 220 3282 012.20.0895.001.21.1504 971 784 82 16 800 8 100 118 012.20.1085.001.21.1504 1161 960 90 16 980 10 98 154 012.20.1360.001.21.1504 1440 1210 82 16 1220 10 122 213 012.25.1360.601.21.1503 1460 1180 102 20 1190 10 119 336 012.25.1600.001.21.1503 1700 1404 102 20 1416 12 118 405 012.30.1381.001.41.1503 1500 1164 120 24 1176 12 98 474 012.30.1630.001.41.1503 1750 1416 120 24 1428 12 119 558 012.30.1800.001.41.1503 1920 1568 120 24 1582 14 113 643 012.30.1995.001.41.1503 2115 1764 120 24 1778 14 127 716 012.30.2330.001.41.1503 2450 2100 120 24 2114 14 151 839 012.30.2538.001.41.1503 2660 2288 120 24 2304 16 144 963 012.35.1960.401.41.1503 2090 1722 138 24 1736 14 124 851 012.35.2500.001.41.1503 2630 2254 138 24 2268 14 162 1112 012.35.2690.001.41.1503 2820 2432 138 24 2448 16 153 1225 012.40.2199.301.41.1502 2350 1920 156 30 1936 16 121 1238 012.40.2622.401.41.1502 2770 2336 156 30 2352 16 147 1495 012.40.2950.001.41.1502 3100 2646 156 30 2664 18 148 1764 012.40.3300.001.41.1502 3450 3006 156 30 3024 18 168 1935 012.45.2940.001.49.1502 3100 2656 175 30 2672 16 167 1950 012.45.3400.101.49.1502 3560 3080 175 30 3100 20 155 2435 012.50.2559.201.49.1502 2725 2250 185 30 2268 18 126 1892 012.50.3520.001.49.1502 3685 3200 185 30 3220 20 161 2657 012.50.3739.001.49.1502 3905 3420 185 30 3440 20 172 2823 012.50.3839.001.49.1502 4005 3520 185 30 3540 20 177 2905
