| Contact Load: | Low Power |
|---|---|
| Protect Feature: | Sealed |
| Size: | Miniature |
| Usage: | PCB |
| Theory: | Electromagnetic Relay |

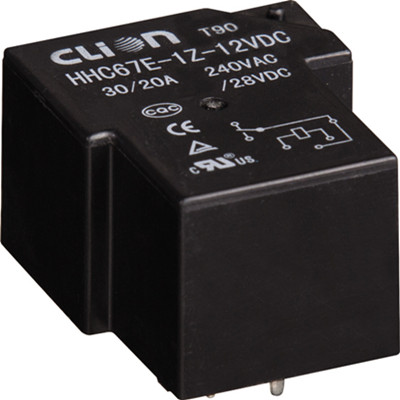

| Model Number: | HHC67E(T90) |
| Brand Name: | Clion |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
| Part NO. | HHC67E(T90) | ||||
| Dimension | 32.5*27.6*20.2 | ||||
| Contact Feature | Form | 1A,1B,1C | |||
| Rated load | A:30A/240VAC 28VDC Z:20A/240VAC 28VDC | A:40A/240VAC 28VDC Z:30A/240VAC 28VDC | |||
| Contact resistance | ≤100mΩ | ||||
| Material | Silver Alloy | ||||
| Electrical life | ≥1*105 | ||||
| Mechanical life | ≥1*107 | ||||
| Operate voltage (23℃) | DC:≤75%*Rated voltage | ||||
| AC:≤80%*Rated voltage | |||||
| Release voltage (23℃) | DC:≥10%*Rated voltage | ||||
| AC:≥30%*Rated voltage | |||||
| Maximum voltage (23℃) | 110%*Rated voltage | ||||
| Normal coil voltage | DC | 3-11OV | |||
| AC | 6-220V | ||||
| Normal coil power | DC | 0.93W | |||
| AC | 1.2VA | ||||
| Pick-up time | ≤15ms | ||||
| Release time | ≤10ms | ||||
| Dielectric strength | between Same-pole contacts | 1500VAC/1min(leakage current 1mA) | |||
| between Opposite-pole contacts | |||||
| between contacts and coil | 1500VAC/1min(leakage current 1mA) | ||||
| Insulation resistance | ≥100mΩ(500VDC) | ||||
| Ambient temperature | -55℃ ～70℃ | ||||
| Ambient humidity | 35%-80%RH | ||||
| Atmospheric pressure | 86-106KPa | ||||
| Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||||
| Installation | PCB | ||||
| Packing | Inner box | Paper box(PCS) | 50 | ||
| Outer box | Paper box(PCS) | 500 | |||
| Dimension of the carton | CTN | 360*210*325mm | |||
| Weight | 1PC | Approximate: 33g | |||
| 1CTN | G.W:16.7KG N.T:15.7KG | ||||
