| Contact Load: | Low Power |
|---|---|
| Protect Feature: | Sealed |
| Size: | Miniature |
| Usage: | General Purpose |
| Theory: | Solid State Relay |

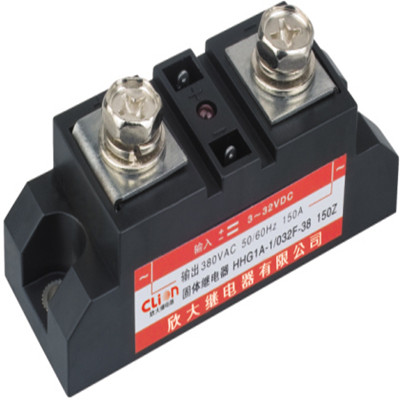

| Model Number: | HHG1A Single-phase Indusreial SSR |
| Brand Name: | Clion |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Part NO. |
HHG1A-1/032F-38 100-350A(SSR-DA) |
HHG1C-1/032F-120 100-350A(SSR-DA) | |
DC---AC |
DC---AC | ||
Description |
Single-phase Industrial SSR |
Single-phase Industrial SSR | |
Control Voltage |
014:3-14VDC 032:3-32VDC |
014:3-14VDC 032:3-32VDC | |
Control Current |
5-25mA |
5-25mA | |
Turn-on Voltage |
3VDC |
3VDC | |
Turn-off Voltage |
1VDC |
1VDC | |
Reverse Voltage |
32VDC |
32VDC | |
Load Voltage |
38:40-440VAC |
120:60-1200VAC | |
Load Current |
100A,120A,150A,200A,250A,300A,350A |
100A,120A,150A,200A,250A,300A,350A | |
Transient Voltage |
38:1100VAC |
120:1600VAC | |
on-state Voltage Drop |
＜1.6VAC |
＜1.6VAC | |
on-off Time |
≤10mS |
≤10mS | |
off-state Leakage Current |
≤10mA |
≤10mA | |
Dielectrics Voltage-resistance |
≥2500VAC |
≥2500VAC | |
Insulation Resistance |
500MΩ 500VDC testing |
500MΩ 500VDC testing | |
Ambient temperature |
-30～80℃ |
-30～80℃ | |
Dimensions |
94L*34W*43H |
94L*34W*43H | |
Indicated Methods |
LED |
LED | |
Installation |
Screw fixing |
Screw fixing | |
Packing |
Inner Box (PCS) |
1 |
1 |
Outer CTN (PCS) |
60 |
30 | |
CTN Size |
380*215*175mm |
380*215*175mm | |
Weight |
235g/pcs G.W:15.25kg N.W:14.25kg | ||
Radiator |
HH063,HH038,HH039,HH040 | ||
Remarks |
1.Load current＞10A,a radiator is necessary,Load current＞80A, fan is necessary. | ||
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage | |||
