| Place of Origin: | China (Mainland) |
|---|---|

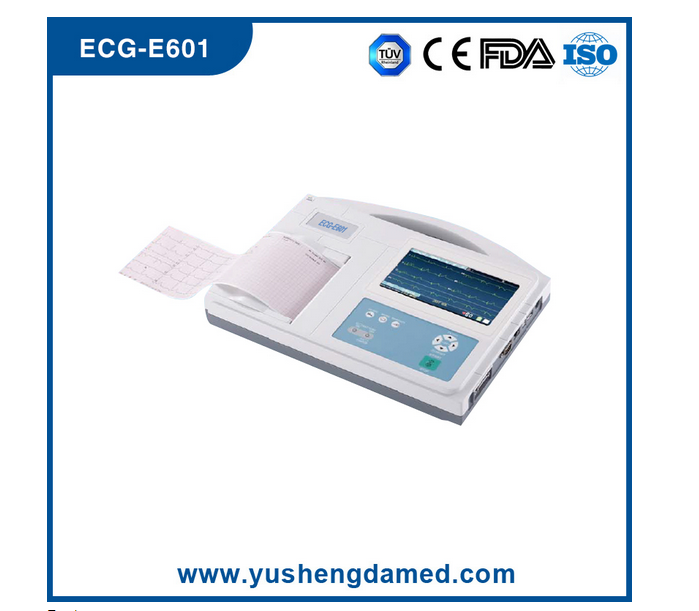

| Model Number: | ECG -E601 |
| Brand Name: | YSD |
| Type: | ECG Machine |
Quick Details
Specifications
Features:
1.5.7 inch 480x272 color graphic LCD display
2. Six channel ECG machine with interpretation
3. 12-lead ECG simultaneous acquisition
4. Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes
5. 80mm 3-channel recording with a rhyth lead
6. Digital filters eliminate EMG, AC, Baseline Drift interference
7. Built in rechargeable Li-ion battery, 3 hours continuous working
8. Adapt 110-240V, 50/60Hz AC power supply
9. 250 patients save/replay
10. Built in USB/RS232 interface
ECG Technical Specifications:
| Lead | Standard 12 lead | Rhythm Lead | Standard 12 lead |
| Input Circuit | Isolated; Protection against pace making and defibrillation |
Operation Mode | AUTO/MAN |
| Frequency Response | 0.05-150Hz(-3dB) | ||
| Paper Speed | 12.5, 25, 50mm/s±3% | ||
| Input Impedance | ≥50M | Recording Paper | Roll Paper 63mmX30m |
| Input Circuit Current | ≤50nA | Sampling Rate | 1.25ms |
| Sensitivity | 5, 10, 20mm/mV | A/D Converter | 12bit |
| LCD | 4.3inch graph LCD | ||
| Filter | AC: 50Hz(-20dB) EMG: 35-45Hz(-3dB) |
External Signal | 10mm/V±5%; Single ended≥100K |
| Skin Voltage Tolerance | ±500mV | ECG Output | 0.5V/mV±5%; Single ended≤ 100 |
| CMRR | 110dB | Safety Level | Class I, Type CF |
| Calibrating Voltage | 1mV±3% | Power Requirements |
18V ADAPTER 70VA Built in rechargeable battery Supporting 300 exams after complete charging |
| Time Constant | ≥3.2s(0,+20%) | ||
| Noise Level | ≤15uVp-p | ||
| Baseline Control | Automatic position | Package | 640X400X530mm(4 sets) 240X310X370mm(1 sets) |
| Printer | Thermal array printer | Weight | 3.0Kgs |
