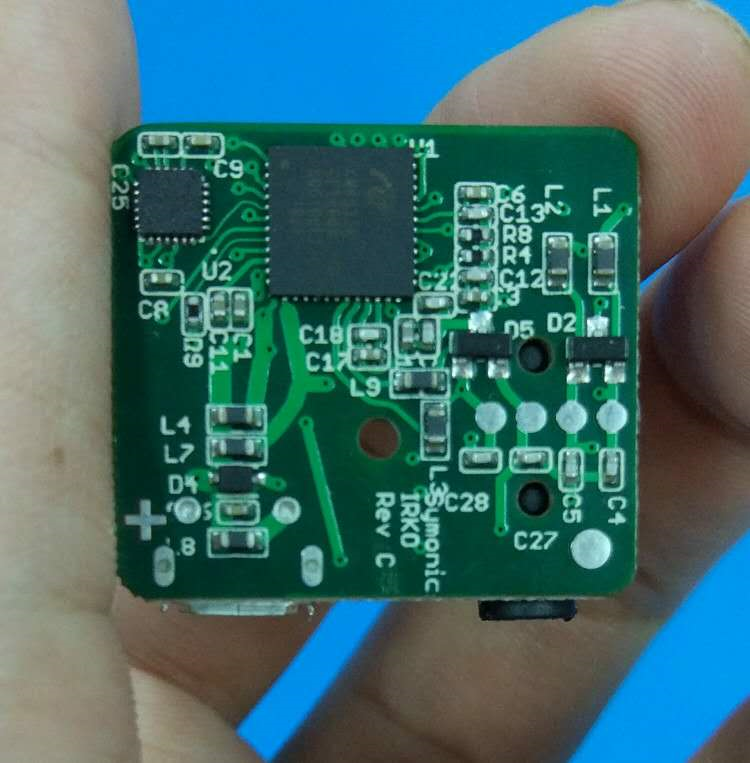

| Surface Finishing: | HASL Lead Free |
|---|---|
| Board Thickness: | 1.6mm |
| Copper Thickness: | 1.0oz |
| Base Material: | FR-4 |
| Brand Name: | ZF electronic |
| Solder mask: | Green |
| Silkscreen: | White |
Quick Details
Specifications
PCB Manufacture Capabilities
PCB Assembly Capabilities
Features |
Capability |
Layers |
1-36 layers |
Material |
FR-4 (Standard FR4, MID-Tg FR4, Hi-Tg FR4, Lead free assembly material), Halogen-Free, Metal Core, Polyester, etc. |
Board Thickness |
0.2mm-6.0mm (.016"-.126") |
Copper Thickness |
1/2oz-6oz(18um-210um) |
Board size |
600mm*1200mm |
Min Tracing/Spacing |
0.075mm/0.075mm (3mil/3mil) |
Min Annular Ring |
0.075mm (3mil) |
Min drilling Hole diameter |
0.15mm(6mil), 0.1mm(4mil)-laser drill |
Min width of cutout (NPTH) |
0.8mm |
Min width of slot hole (PTH) |
0.6mm |
Solder Mask |
LPI, different colors(Green, Green matt, Black, Black Matt, White, Red, Yellow, Blue) |
Silkscreen color |
White, Blue, Black, Red, Yellow |
Surface finish |
Lead free HASL, immersion gold, golden finger, immersion tin, immersion silver, OSP, Carbon oil, plated hard gold(up to 100u") |
Board thickness tolerance |
±10% |
Board size tolerance |
±0.1mm |
PTH hole size tolerance |
+/-.003"(+/-0.08mm)~+/-.006"(+/-0.15mm) |
NPTH hole size tolerance |
+/-.002"(+/-0.05mm) |
Impedance tolerance |
+/-5%~+/-10% |
Chamfer of Gold Fingers |
20, 30, 45, 60 |
Test |
10V-250V, flying probe or testing fixture |
Others Techniques |
Gold fingers |
Blind/Buried hole | |
Peelable solder mask | |
Edge plating | |
Carbon Mask | |
Kapton tape | |
Countersink/counterbore hole | |
Half-cutted/Castellated hole | |
Press fit hole | |
Via tented/covered with resin | |
Via plugged/filled with resin | |
Via in pad |
PCB Assembly Capabilities
Lead time |
24hours, 3-5 days, 1-2 weeks, or scheduled deliveries (not include the shipping time) |
Quantity |
from prototype to big volume, no MOQ |
Assembly type |
Surface mount |
through hole | |
Hybrid | |
PCB specification |
PCB size smaller than 30mm must be panelized. |
Max: 510x460 mm | |
Material: Rigid, metal core, FPC | |
Surface finish: lead / lead-free HASL, ENIG, silver, OSP, Golden finger | |
Parts procurement |
Full turnkey (we provide all components) |
Partial turnkey (Customer provide the main components and we provide the rest) | |
Kitted (Customer provide all components) | |
Component types |
SMT 0201 or larger |
BGA 0.3mm pitch | |
QFP 0.3mm pitch | |
BGA X-ray inspected | |
Cable & wire | |
Conformal coating | |
SMT parts presentation |
Bulk |
Cut tape | |
Partial reel | |
Reel | |
Tube | |
Tray | |
Solder types |
Lead-free: RoHS compliant |
Stencils |
Laser-cut stainless steel |
Miscellaneous |
IC programming, custom testing, free DFM checking, ICT, FCT |
