| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 Year |
| Certification: | CE ISO SGS |
| Weight: | depends on the model and features of the ordered machine |
| Dimension(L*W*H): | depends on the model and features of the ordered machine |
| Power(W): | 5.5-13.5 |
| Voltage: | 380V 50Hz |
| Model Number: | JN-MJ |
| Brand Name: | KNM |
| Place of Origin: | China (Mainland) |
| Processing Type: | Paper Folding Machine |
| Product Type: | Facial tissue |
| Condition: | New |
Quick Details
Specifications

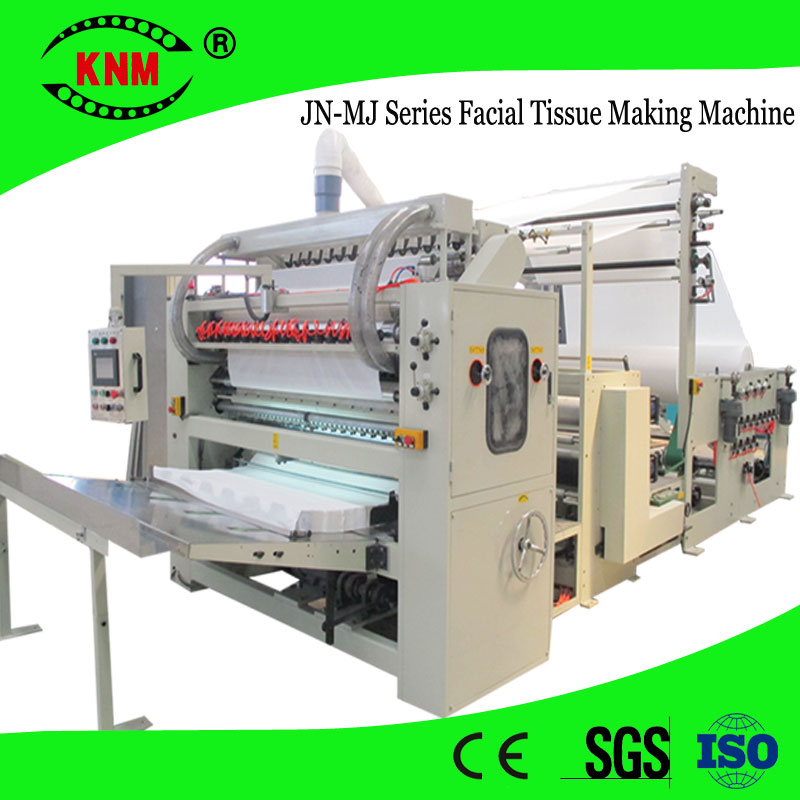

this facial tissue paper folding machine adopt the PLC control system, HMI, one button Chinese -English/Russian language switch, independent frequency conversion synchronous drive,and mechanic and photoelectric integration, and so on some advanced technology. Machine equipped with whole line self-detection system, it can observe itself during the productivity, keeping the machine line in optimal situation.
1. General Specification:
1.1 Equipped with steel to rubber embossing roller, pneumatically separating.
1.2 Pneumatic jumbo roll loading, pneumatic paper driving, stepless speed adjustment, and web tension control.
1.3 Equipped with Roots Type vacuum pump for stable running of the machine.
1.4 Pneumatic dot slitting to make various products width.
1.5 Jumbo roll guiding system available.
1.6 the machine will stop when the paper broken
1.7 two jog buttons to thread the papers
1.8 Key parts regularly lubricating automatically.
2. technical specifications:
Facial Tissue Paper Folding Machine | |||
Unflod finish product size(mm) |
180/190/200(Other sizes to be specified) | ||
Jumbo roll (GSM) |
Single ply 13~24gram(Other sizes to be specified) | ||
Jumbo roll width(mm) |
900~1500 | ||
Core size of jumbo roll |
76.2mm(Other sizes to be specified) | ||
Production speed |
85-110m/min | ||
Main power(KW) |
5.5-13.5 | ||
Vacuum power(KW) |
15-30KW | ||
Cut off |
with the upper blades stay still | ||
Machine framework |
the metal plate and welding structure | ||
Paper detection |
Web break detectors throughout all the units on the line and automatic stop | ||
Machine drive |
Motor drive, reducer(with chain), timing belt, flat belt, chain, triangle belt | ||
Paper loading system |
Automatic and pneumatic loading system | ||
Unwind stand |
2ply | ||
Folding rolls |
Adjustable | ||
Counting system |
Alternate stack by stack,or ink dot counting | ||
Output system |
Stepless speed control flat belt | ||
Dimension(mm) |
Depend on the machine model | ||
Weight(kg) |
Depend on the machine model | ||
Option | |||
Unwind stand |
4ply | ||
Embosser |
Steel to steel, steel to rubber | ||
Edge embosser |
Steel to steel | ||
Trimming system |
Vacuum suction trimming | ||
