| Phase: | Single Phase |
|---|---|
| Model Number: | HHT1-R/22 |
| Brand Name: | Clion |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Part NO. |
HHT1-R/22, 38 10-40A | ||
SSR-VA | |||
Description |

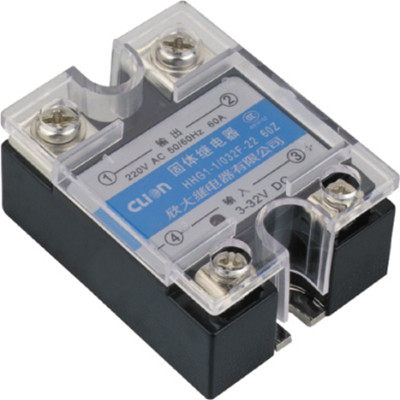

Single-phase Solid Voltage Regulator | ||
Control mode |
2W470-560KΩ potentiometer | ||
Load Voltage |
22:220VAC |
38:10-440VAC | |
Voltage-regulation Scope |
22:10-250VAC |
38:10-441VAC | |
Isolation Voltage |
Not isolated | ||
off-state Leakage Current |
≤10mA | ||
Output Current |
10A,15A,20A,25A,30A,40A | ||
Transient Voltage |
22:600VAC,38:900VAC | ||
on-state Voltage Drop |
＜3VAC | ||
Dielectrics Voltage-resistance |
≥2500VAC | ||
Insulation Resistance |
500MΩ 500VDC testing | ||
Ambient temperature |
-30～80℃ | ||
Dimensions |
57.2L*43.5W*29H | ||
Indicated Methods |
LED | ||
Installation |
Screw fixing | ||
Packing |
Inner Box (PCS) |
1PCS/small box,10pcs/paper box | |
Outer CTN (PCS) |
100 | ||
CTN Size |
380*215*175mm | ||
Weight |
10A≤110g/PCS G.W:12kg N.W:11kg
40A≤145g/PCS G.W:15.5kg N.W:14.5kg
80A≤150g/PCS G.W:16kg N.W:16kg | ||
Radiator |
HH060,HH061,HH062,HH063 | ||
Remarks |
1.Load current＞10A,a radiator is necessary,Load current＞80A, fan is necessary. | ||
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage | |||
