Contact Load: Low Power
Protect Feature: Sealed
Size: Miniature
Usage: General Purpose
Theory: Electromagnetic Relay
Brand Name: Clion
Place of Origin: China (Mainland)

Specifications

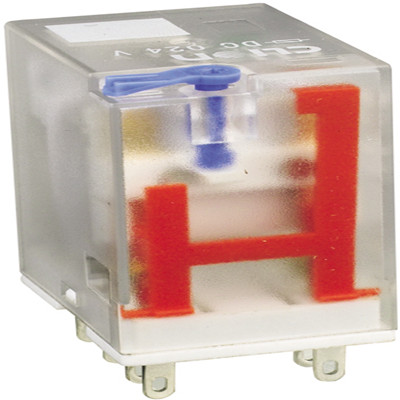

general purpose relay HHC68AZJQX13FZ

Part NO.
HHC68AZ(JQX-13FZ)
Dimension
28*21.5*36
Contact Feature
Form
2A,2B,2C
Rated load
10A/240VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (23℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
6-380V
Normal coil power
DC
0.9W
AC
1.2VA
Pick-up time
≤20ms
Release time
≤20ms
Dielectric strength
between Same-pole contacts
1000VAC/1min(leakage current 1mA)
between Opposite-pole contacts
1500VAC/1min(leakage current 1mA)
between contacts and coil
1500VAC/1min(leakage current 1mA)
Insulation resistance
≥100mΩ(500VDC)
Ambient temperature
-25℃ ～55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
PCB,SOCKET
