Part NO.		HHG1D-1/032F-22, 38 1-4A	HHG1D-0/032F-06, 20 1-4A
		DC---AC	DC---DC

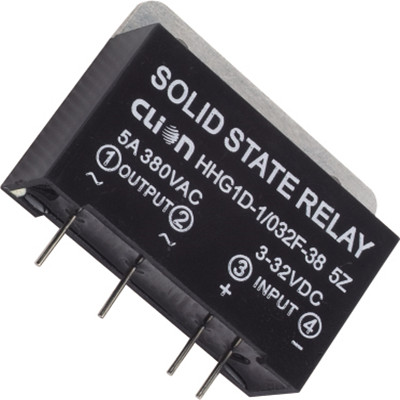

Description		Miniature single-parallel PCB SSR	Miniature single-parallel PCB SSR
Control Voltage		014:3-14VDC 032:3-32VDC	014:3-14VDC 032:3-32VDC
Control Current		6-35mA	6-35mA
Turn-on Voltage		3VDC	3VDC
Turn-off Voltage		1VDC	1VDC
Reverse Voltage		32VDC	32VDC
Load Voltage		22:30-240VAC,38:40-440VAC	06:12-60VDC,11:12-110VDC,20:12-200VDC
Load Current		1A,2A,3A,4A	1A,2A,3A,4A
Transient Voltage		22:600VAC,38:900VAC	06:100VDC,11:110VDC,20:220VDC
on-state Voltage Drop		＜1.6VAC	＜1.2VDC
on-off Time		≤10mS	≤5mS
off-state Leakage Current		≤10mA	≤5mA
Dielectrics Voltage-resistance		≥1500VAC	≥1500VAC
Insulation Resistance		500MΩ 500VDC testing	500MΩ 500VDC testing
Ambient temperature		-30～80℃	-30～80℃
Dimensions		43L*25.5W*12H	43L*25.5W*12H
Indicated Methods		/	/
Installation		PCB	PCB
Packing	Inner Box (PCS)	20/Foam board
	Outer CTN (PCS)	600
	CTN Size	380*215*175mm
	Weight	about 22g/pcs G.W:14.5kg N.W:13.5kg
Radiator		/
Remarks		1.Load current＞10A,a radiator is necessary,Load current＞80A, fan is necessary.
		2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
