1x2 Optical Switch Description

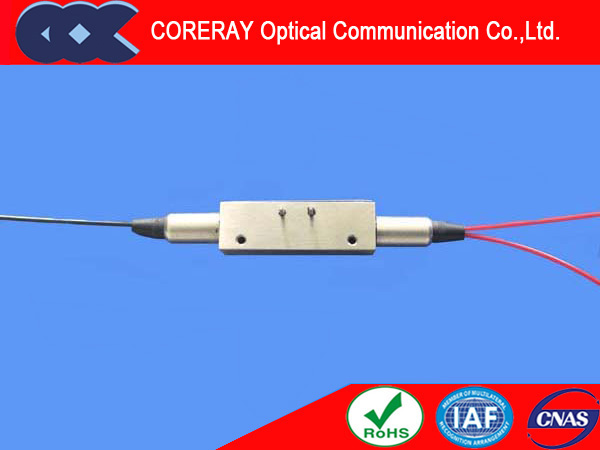

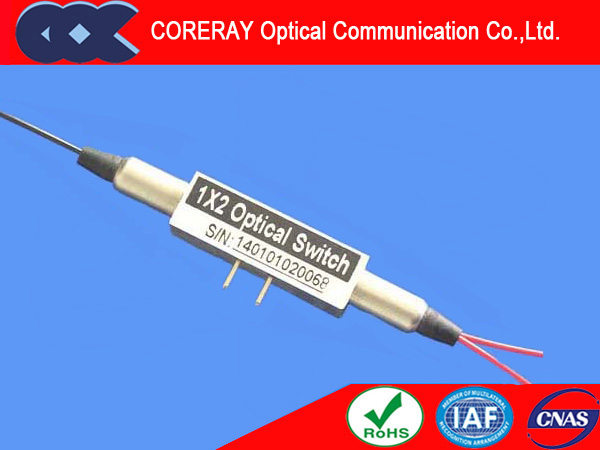

1x2 Optical Switch More Pictures






1x2 Optical Switch Features:



Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching



1x2 Optical Switch Application

Optical Signal Switching and Routing

Optical Network Protection and Restoration

Optical Network Monitoring

Video Distribution

Instrumentation Resource Sharing

Military Communications



1x2 Optical Switch Specification



Parameters		SOSW-12
Wavelength Range	nm	1295~1325,1520~1580
Testing Wavelength	nm	1310/1550
Insertion Loss	dB	Typ:0.7 ,Max:1.0
Return Loss	dB	50
Channel Cross Talk	dB	45
PDL	dB	0.10
Polarization Mode Dispersion	ps	0.20
TDL	dB	0.25
Power Handling	mW	300
Switching Speed	ms	50~200
Repeatability	dB	2K
Operating Temperature	C	-40~+85
Storage Temperature	C	-40~+85

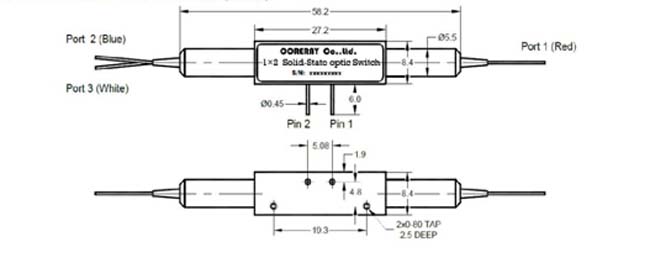

Dimensions	mm	(L)58.2(W)8.4(H)8.4(0.2)



Electrical Driving Information

the switch is actuated by applying a voltage pulse. Applying one polarity pulse, one light path will be connected and latched to the position. Applying a reversed polarity pulse, another light path will be connected and latched to the position after pulse removed.



Parameter	Minimum	Typical	Maximum	Unit
Driver Voltage	4.5	5	5.5*	V
Driver Current	110	140	195	mA
Pulse Duration	0.2	0.3	0.5	ms



Driving kit with USB and TTL interfaces and Windows TM GUI is available. We also offer RS232 interface as an option please contact coreray sales.



2x1 switch

Optical Path	Pin 1	Pin 2
Port 2Port 1	5V Pulse	GND
Port 3Port 1	GND	5V Pulse





1x2 switch

Optical Path	Pin 1	Pin 2
Port 1Port 2	GND	5V Pulse
Port 1Port 3	5V Pulse	GND



the typical driver voltage of single stage is 2.5V.

over this value will damage the device.

Ordering Information:SOSW-1x2-A-B-C-D-E-F-G



A	B	C	D	E	F	G
Type	Mode	Wavelength	Switch	Fiber Diameter	Fiber Length	Connector
1x1 1x2 2x1	SM:9/125um	13:1310nm 15:1550nm	2:dual Stage 0:special	25:250um 90:900um	05: 0.5m 10: 1.0m 15: 1.5m	OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC
