| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 Year |
| Weight: | 1500-3500KG |
| Dimension(L*W*H): | Depends on the size of machine |
| Power(W): | Depends on the size of machine |
| Voltage: | 380V 50Hz |
| Model Number: | JN-CJ series |
| Brand Name: | KNM |
| Place of Origin: | China (Mainland) |
| Processing Type: | Paper Folding Machine |
| Product Type: | Paper Napkin Machine |
| Condition: | New |
| prinding: | 1-2 color |
Quick Details
Specifications

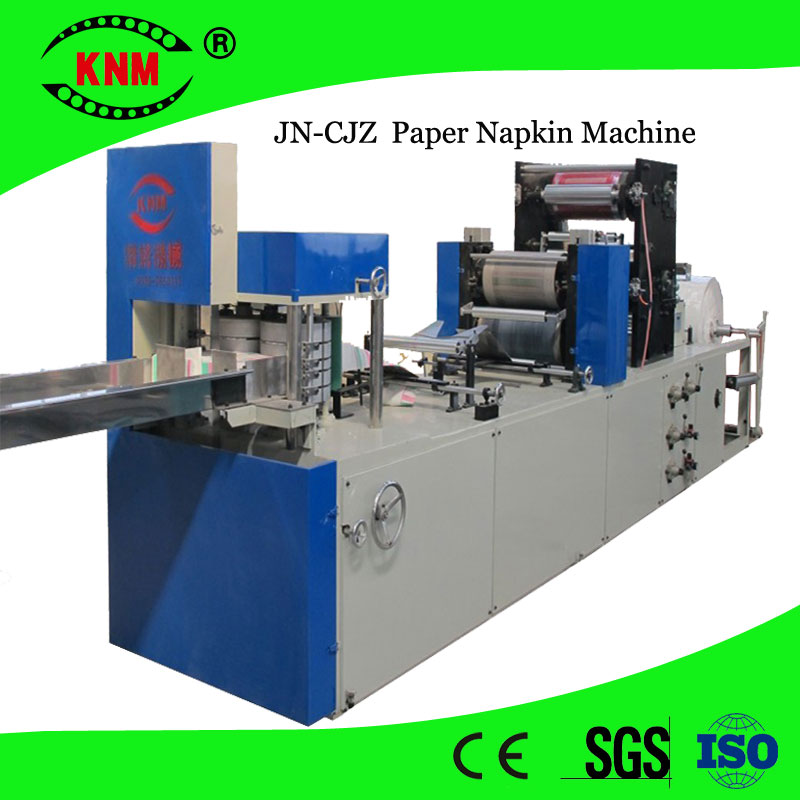

High speed printing/embossing napkin machine is for the production of square or rectangular napkin paper.the jumbo rolls which have been slit to the desired width are embossed,printed and folded to finished products.It is featured of clear, correct printing and stable running at high speed.It is ideal equipment for the production of high quality and top grade napkins.
Features
1.Equipped with timing belt and gear-box transmission.
2.Embossing roll can be heated by heating element automatically.
3.Adopt flexograhic printing unit and professional anilox roll,can change the various printing patterns.
4.Equipped with frequency conversion speed adjustment according to the customer's requirement.
Main Technical Parameters
Type |
JN-CJ series |
Unfold size(mm) |
230X230-460X460 |
Folded size(mm) |
115X115-230X230±2mm |
Raw paper Dia.(mm) |
≤Φ1100 |
Raw paper core Dia.(mm) |
76.2 |
Folding speed |
0-1000pieces/min |
Counting |
Electrical counting(pneumatic) |
Embossing |
Steel to wool |
Printing |
Flexo printing 1-2color,depends on the size |
Power |
1.5-4kw |
Dimension(mm) |
4150X800X1600(LXWXH) |
Weight |
1500-1800KG |
Options | |
Power |
Frequency conversion speed regulator,stepless speed regulator |
Driving system |
Timing belt,gear box |
Automatic paper loading |
to be ordered. |
Bottom embossing roller |
Felt roller,rubber roller,wool roller,steel roller |
Calendering |
Steel to steel,steel to rubber |
Printing color |
1~2 color |
Dryer |
Hot winder heated |
