| Usage: | Coating |
|---|---|
| Model Number: | WSS60/WSS80 |
| Brand Name: | Dasheng |
| Place of Origin: | China (Mainland) |
| thickness: | 2.0mm,2.3mm,2.5mm |
| width: | 300mm,400mm,500mm |
Quick Details
Specifications

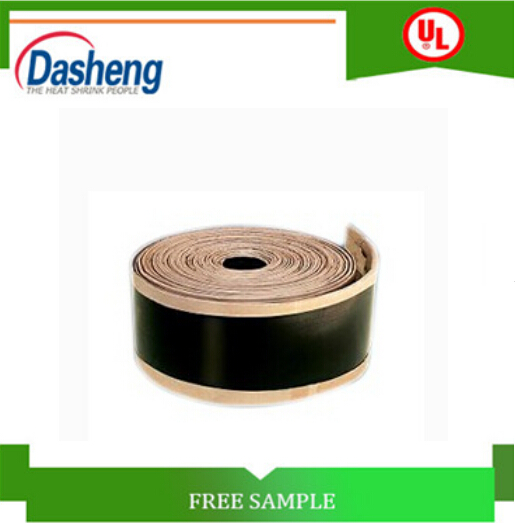

Product description:
Construction: 3-layer system
First layer: Liquid epoxy primer, solvent-free two-component.
Second layer: High shear strength hot-melt copolymer adhesive.
Third layer: Radiation cross-linked, high density polyethylene backing.
Installation:
during installation, the epoxy primer is applied to the prepared pipe surface and the heat-shrinkable sleeve is immediately wrapped around the joint over the wet epoxy. Heat is then Applied to the sleeve which shrinks to form a tight fit around the joint. while curing, the epoxy forms strong mechanical and chemical bonds to the pipe surface & to the Copolymer adhesive layer. the radiation cross-linked outer layer forms a tough barrier against mechanical damage and moisture transmission.
Product features/benefits:
? Excellent multifunctional adhesive allows for lower installation pre-heat temperature and super bonding to PE, PP and
FBE, offer fully resistant to shear forces induced by soil and thermal movements.
?Superior cathodic disbondment and hot water immersion resistance offers the optimum barrier long-term protection against corrosion.
? Saves time & cost by lower preheat temperature, wet epoxy primer application.
Product selection guide: | ||
WSS60 |
WSS80 | |
Max operating temperature |
70℃ |
85℃ |
Compatible line coatings |
PE, FBE, PP |
PE, FBE, PP |
PReheat temperature |
75℃ |
85℃ |
Recommended pipe preparation |
Sa2.5, St3.0 |
Sa2.5, St3.0 |
Product properties: | |||||
Property |
Test Method |
WSS 60 |
WSS 80 | ||
Backing | |||||
Tensile Strength |
ASTM D638 |
2,600 psi |
2,900 psi | ||
Elongation |
ASTM D638 |
550% |
550% | ||
Hardness, Shore D |
ASTM D2240 |
45 |
45 | ||
Shrink Force |
ASTM D638 |
35 psi |
35 psi | ||
Dielectric Strength |
ASTM D149 |
20kV/mm |
20kV/mm | ||
Volume Resistivity |
ASTM D257 |
1x 1016Ω-cm |
1x 1016Ω-cm | ||
Water Absorption |
ASTM D570 |
< 0.1% (Wt) |
< 0.1% (Wt) | ||
Adhesive | |||||
Softening Point |
ASTM E28 |
103oC |
112oC | ||
Lap Shear |
ASTM D1002 |
200 N/cm2@23oC |
400 N/cm2@23oC | ||
Lap Shear |
DIN EN 12068 |
32 N/cm2@60oC |
11 N/cm2@80oC | ||
Installed Product | |||||
Peel Strength |
DIN EN 12068 |
65 N/cm @ 23oC |
85 N / cm | ||
Impact Resistance |
DIN EN 12068 |
> 15 J |
> 15 J | ||
Indentation Resistance |
DIN EN 12068 |
> 1mm @ 60oC |
> 1mm @ 80oC | ||
Cathodic Disbandment |
DIN EN 12068 |
< 15mm rad. |
< 15mm rad. | ||
Resistance to thermal Aging -Tensile strength ratio -Elongation ratio |
DIN EN 12068 |
after 100 days @ 80oC 0.9 0.9 |
after 100 days @ 100oC 0.9 0.8 | ||
Ordering information: | ||
WSS type products are Available: ?as cut piece (pre-cut sleeve with separate closure patch) ?as a roll (closure patches to be ordered separately) ?Select sleeve width that will overlap onto the mill-applied coating by 2 inches (50 mm) minimum on each side of the weld joint. Take a 10% shrinkage during installation of sleeve width into account when calculating the minimum sleeve width. ?Sleeve cut lengths and appropriate closure patch widths depend on the pipe size and product construction, see application table. |
Range for available dimension: | |
Sleeve width |
up to 1100mm | |
Backing thickness (recovered) |
0.5mm to 1.5mm | |
Adhesive thickness |
0.8mm to 2.0mm | |
Roll length |
10m, 15m & 30m | |
Application table: | ||||||
Pipe size |
Pipe OD |
Sleeve length |
Closure width |
Expoxy primer | ||
DN(mm) |
Inch |
(mm) |
(mm) |
(mm) |
Part A(gms) |
Part B(gms) |
100 |
4 |
114 |
500 |
100 |
39 |
20 |
125 |
5 |
141 |
600 |
100 |
48 |
24 |
150 |
6 |
168 |
690 |
100 |
54 |
27 |
200 |
8 |
219 |
850 |
125 |
69 |
35 |
250 |
10 |
273 |
1040 |
125 |
84 |
42 |
300 |
12 |
324 |
1230 |
125 |
98 |
49 |
350 |
14 |
356 |
1,340 |
125 |
106 |
53 |
400 |
16 |
406 |
1,490 |
125 |
120 |
60 |
450 |
18 |
457 |
1,660 |
125 |
136 |
68 |
500 |
20 |
508 |
1,840 |
125 |
150 |
75 |
600 |
24 |
610 |
2,180 |
150 |
178 |
89 |
700 |
28 |
711 |
2,400 |
150 |
206 |
103 |
800 |
32 |
813 |
2,750 |
150 |
250 |
125 |
900 |
36 |
914 |
3,090 |
150 |
280 |
140 |
1000 |
40 |
1,016 |
3,430 |
200 |
388 |
194 |
1100 |
44 |
1,120 |
3,780 |
200 |
430 |
215 |
1200 |
48 |
1,220 |
4,120 |
200 |
446 |
223 |
1400 |
56 |
1,420 |
4,790 |
200 |
550 |
275 |
1500 |
60 |
1,520 |
5,130 |
200 |
585 |
290 |
1600 |
64 |
1,620 |
5,460 |
200 |
625 |
310 |
1700 |
68 |
1,720 |
5,800 |
200 |
665 |
330 |
1800 |
72 |
1,820 |
6,130 |
200 |
700 |
350 |
1900 |
76 |
1,920 |
6,470 |
200 |
750 |
375 |
2000 |
80 |
2,020 |
6,800 |
200 |
780 |
390 |
2200 |
88 |
2,200 |
7,410 |
200 |
850 |
425 |
