Pecifications

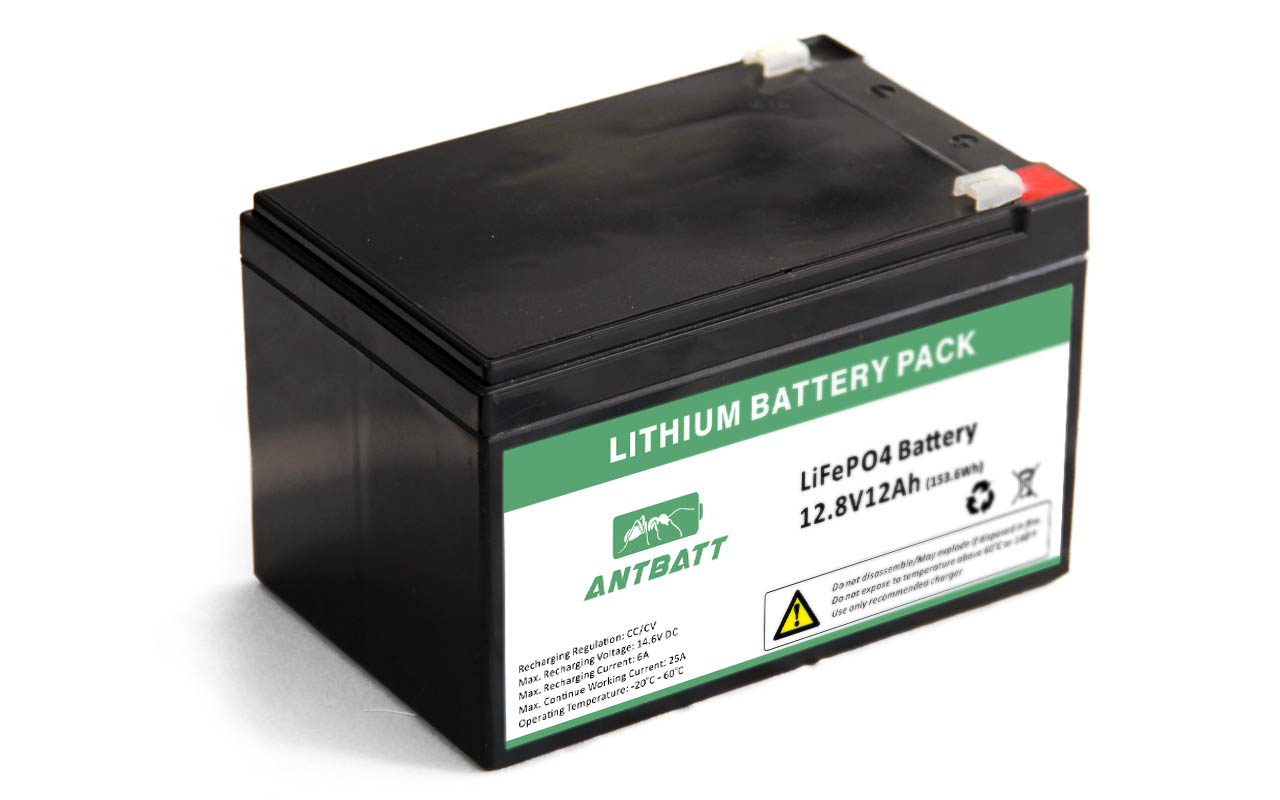

AntBatt( sales(at)) lithium ion Phosphate 12.8V12Ah Battery pack is designed as lighter-weight, longer-lasting replacement for Floor Cleaning Machine lead acid batteries. Based on LiFePO4 18650 3.2V 1500mAh cells, 12V12Ah delivers higher power, greater energy density and increased safety to deliver superior performance and reduced operating costs as compared to lead acid.

Product Main Features

Long Life

LiFePO4 12V12Ah delivers up more than 10 times longer cycle life and five times longer float/calendar life than lead acid. Which helps to minimize the cleaning machine battery replacement costs of ownership.

Light Weight

It weight weighs less than half of comparable lead acid batteries, providing customers with a lighter-weight solution to optimize your product design and avoid unnecessary oversizing, which helps minimize cost and system complexity.

High Power Capability

LiFePO4 25.6V40Ah is designed to deliver twice the power of lead acid, including at high discharge rates, while maintaining high energy capacity to maximize product performance. Which lengthens the Cleaning machine working time per charge.

Superb Safety

AntBatt LiFePO4 technology offers excellent abuse tolerance, establishing a foundation of safety at the cell level. In addition, multiple system-level of protection are employed to deliver greater durability and reliability compared to lead acid and competing lithium ion NMC or NCA battery technologies.

Electrical Characteristics	Nominal Voltage	12.8V
	Rated Capacity	12Ah (@0.5C Discharge)
	Energy	153.6Wh
	Continuous Output Power	300W
	Alternating Inner Resitance	≤ 50mΩ
	Cycle Life	>2000 cycles @1C 100%DOD
Standard Charge	Charge Voltage	14.4VDC
	Charge Mode	CC/CV
	Max. Charge Current	6A
Stabdard Discharge	Continuous Current	20A
	Max. Discharge Current	70±10A (@10±5ms)
	Discharge Cut-off Voltage	8V
Mechanical	Cell	18650-3.2V-1500mAh
	Assembly	4S8P
	Dimension	151x99x96mm
	Housing Material	ABS Plastic
	Weight	1.68kg
	Charge Terminal	T2
	Discharge Terminal	T2
