PRODUCT DESCRIPTION

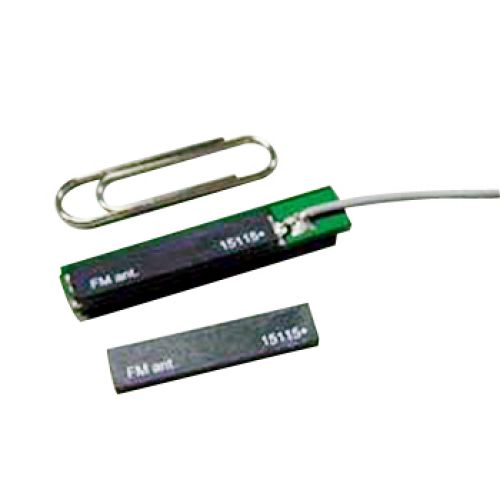

FA-100 is HIGH-PERFORMANCE FM 88~108MHz small antennas. It is for FM Radio, Mobile phone, Audio Player applications. This FM antenna comprises a radiating structure of multiple meandered conducting strips, which are developed on a tiny piece of Printed Circuit Board (PCB) and packed with a Thermal Plastic dielectric composite material to achieve size, performance characteristics and cost effectiveness superior to other designs. The Single body dimensions is 24.15 mm (L) x 5 mm (W) x 1.5 mm (T). Module dimensions is : 35.6 x7.0x 3.5mm(with 3M) with 70mm-IPEX cable.



Application:

1.      FM Radio

2.      Mobile Phone

3.      Audio Player

PRODUCT SPECIFICATION

1.      Frequency Band        FM 88~108 MHz

2.      Nominal Impedance 50 ohm

3.      Polarization       Linear

4.      Pattern      Omni-Directional

5.      Dimension (mm3)     Single body : 24.15x5x1.5 mm Module : 35.6 x7.0x 3.5mm(with 3M)-70mm-IPEX

6.      Construction      Thermal Plastic Insert Molding
