PRODUCT FEATURE
1. Excellent Signal Reception:
Re-radiating Distance is around 3-5 meters from the Reradiator. In addition, full receiver Visibility of GPS/GLONASS satellites outdoor comes along with an amplified Re-radiated signal indoor.
2. Highly Integrated System:

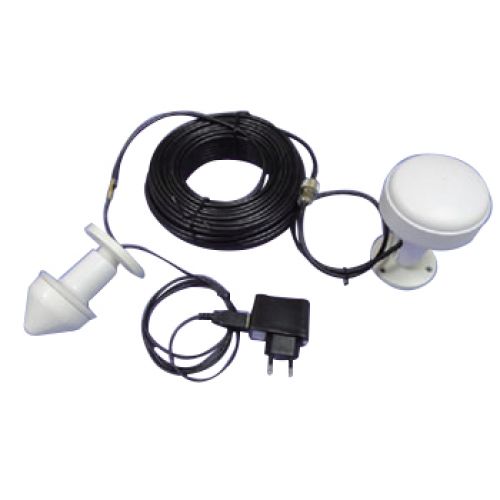

Designed to operate as a whole, the system kits are composed of a high-gain external GPS/GLONASS Antenna, a precisely calibrated amplifier circuit with a Patch type indoor Reradiator and a built-in power supply regulator that provides systems with Power. the unit is designed as plug-n-play hardware and it can be installed Either permanently to a secured location or quickly at users' convenience by Using either screw mounting or glass suction cup, respectively, for the indoor Reradiating active patch antenna.
3. Efficiency & Convenience:
the Reradiator Transmits real time data throughout the vehicle directly to an unlimited number of users. Multiple GPS/GLONASS receivers or hand-helds can share just one Reradiating to receive timely data.
4. Power Saving:
Thanks to its GPS/GLONASS Power Saver desgin, the system uses an independent power supply Source, saving users from the need of other power source for their GPS/GLONASS Unit.
5. Easy-to-Setup:
No additional
Cables are required and no external GPS/GLONASS antennas are needed to be
Plugged and unplugged when using a GPS/GLONASS receiver inside the vehicle.
Applications:
- Laboratory
- Offices
- Various Kinds of transportation means such as trucks, trains, Ships, sailing boats & buses.
Features:
- Extra-high Gain and Low Noise
- All Voltage (3.0V~5.5 V) can be available in one.
- Extra-low current consumption in low voltage.
- Various accessories are available.
Configuration:
- Two Ports: RF Input Port and DC Input Port. RF Input is Connected to the Active GPS+GLONASS antenna. DC Input is fed by DC voltage (typical is 5 voltage).
- RF Input is amplified by at least 28 dB gain and then, the Amplified signal is radiated from Patch antenna. The Patch antenna is Dual-band antenna for GPS plus GLONASS ystems.
