Product Main

Quick Details

Dimensions: Thickness 0.5-35mm*Width 20*600mm *Length
Brand Name: CXMET
Place of Origin: China (Mainland)
Puirty: 99.95%

Specifications

Cold rolled molybdenum plate 1mm for LED screen

Product Description:



1. Product name: Molybdenum Sheet/plate



2. Standard: ASTM B386 or as required



3. Material: Mo >99.95%



4. Density: >10.2g/cc



5. Tensile strength: 610MPa



6. Elongation: > =10%



7. Using temperature: 1800℃, max temperature: 2310℃

Tolerance Table:

Thickness(mm) Tolerances(mm) Width(mm) Tolerances(mm) Length(mm) Tolerances(mm) Flatness(%)
0.1mm ±0.01 600mm ±1mm 2000mm ±5mm < 2%
0.2mm ±0.02 600mm ±1mm 2000mm ±5mm < 2%
0.3mm ±0.02 600mm ±1mm 2000mm ±5mm < 2%
0.4mm ±0.03 600mm ±1mm 2000mm ±5mm < 2%
0.5mm ±0.03 600mm ±1mm 2000mm ±5mm < 2%
0.8mm ±0.05 600mm ±1mm 2000mm ±5mm < 2%
1mm ±0.06 600mm ±1mm 2000mm ±5mm < 2%
1.5mm ±0.06 600mm ±1mm 2000mm ±5mm < 2%
2mm ±0.06 600mm ±1mm 2000mm ±5mm < 2%
3mm ±0.2 500 ±1mm 500 ±2mm < 2%
4mm ±0.2 500 ±1mm 500 ±2mm < 2%

Application:



Molybdenum plate is used for making electric light source parts, components of electric vacuum and electric power semiconductor. It is also used for producing molybdenum boats, heat shield and heat bodies in high temperature furnace. It is widely used in furnace construction mould and parts, electronic components manufacturing and semiconductor industry. In vacuum furnace and high temperature furnace and heat preservation material plate electrode, etc.
Product Show:

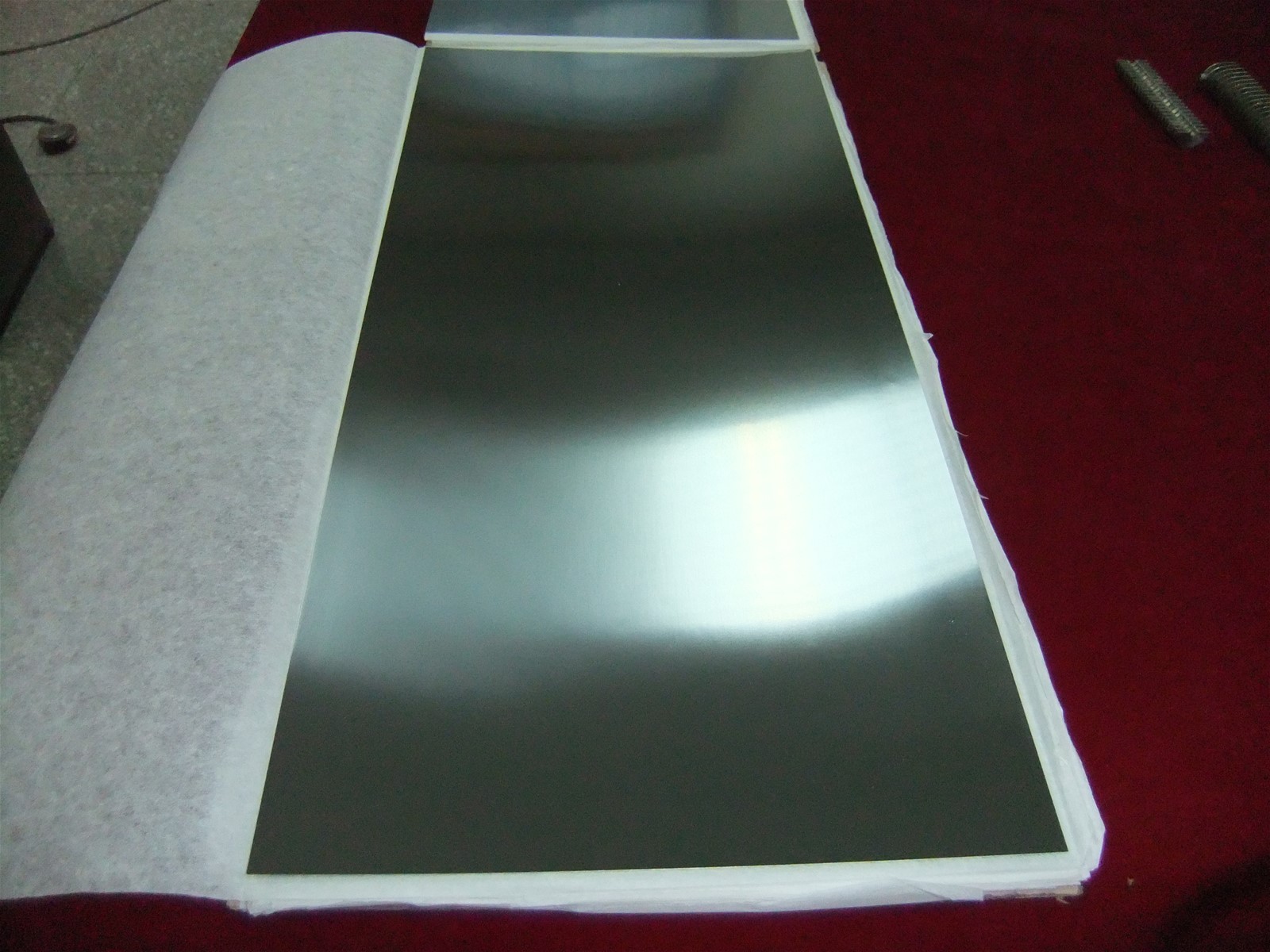

cold rolled molybdenum plate 1mm for LED screen



If interested in it, pls contact with us! CXMET
