100m to 500m Depth Undergrounder Water Finder Earth Resistivity Meter

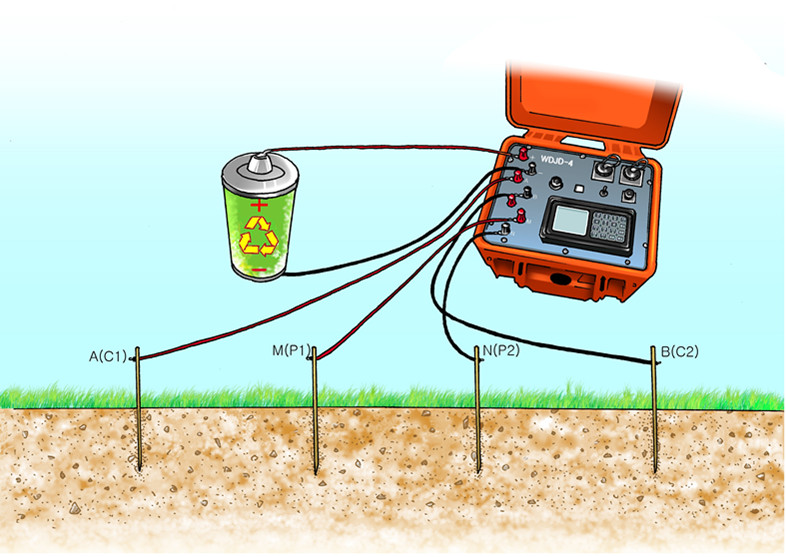

WDDS-2 digital resistivity equipment is a new generation of DC resistivity instrument which is based on a series of advanced electrical equipment for resistivity sounding survey, and adopts 32-bit microcontroller technology and 24-bit A / D technology development.

Application:
Underground water inspection

Engineering geology inspecting as dam base exploration and flood

Metal source exploration

Non-metal source exploration

City geophysical exploration

Railway and bridge

Main features:

1.RS-232 serial interface enables the instrument to communicate with other computers.

2.Monitoring the dynamic variation of MN electrode potential through inspecting its ground resistance.

3.Receiver supports transient over-voltage protection for input voltage; transmitter supports over-voltage protection, over-current protection and AB open-circuit protection.

4.Automatically displaying the resistivity relative error between the current measuring result and the last measuring result.

5.Able to store measuring data for more than 150,000 times, including voltage, current, resistivity, relative error, SP, array constant, measuring point and so on.
