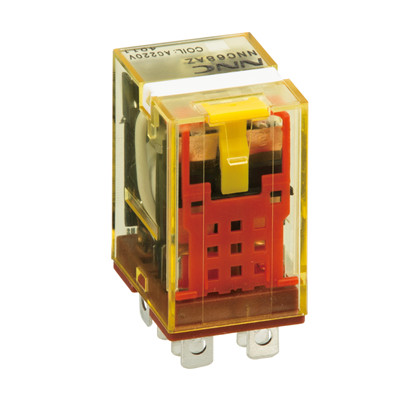

| Part NO. |
NNC68AZ(JQX-13FZ) |
| Dimension |
28*21.5*36/27.3*31*35/27.3*41*35 |
| Contact Feature |
Form |
2A,2B,2C,3A,3B,3C,4A,4B,4C |
| Rated load |
10A/240VAC 28VDC |
| Contact resistance |
≤100mΩ |
| Material |
Silver Alloy |
| Electrical life |
≥1*105 |
| Mechanical life |
≥1*107 |
| Operate voltage (23℃) |
DC:≤75%*Rated voltage |
| AC:≤80%*Rated voltage |
| Release voltage (23℃) |
DC:≥10%*Rated voltage |
| AC:≥30%*Rated voltage |
| Maximum voltage (23℃) |
110%*Rated voltage |
| Normal coil voltage |
DC |
6-220V |
| AC |
6-380V |
| Normal coil power |
DC |
0.9W |
| AC |
1.2VA |
| Pick-up time |
≤20ms |
| Release time |
≤20ms |
| Dielectric strength |
between Same-pole contacts |
1000VAC/1min(leakage current 1mA) |
| between Opposite-pole contacts |
1500VAC/1min(leakage current 1mA) |
| between contacts and coil |
1500VAC/1min(leakage current 1mA) |
| Insulation resistance |
≥100mΩ(500VDC) |
| Ambient temperature |
-25℃ ～55℃ |
| Ambient humidity |
45%-75%RH |
| Atmospheric pressure |
86-106KPa |
| Shock resistance |
10G (sinusoidal half-wave pulse: 11ms) |
| Vibration resistance |
10-55Hz (double amplitude: 1.0mm) |
| Installation |
PCB,SOCKET |
