| Brand Name: | stv |
|---|---|
| Model Number: | Q641F |
| Place of Origin: | China (Mainland) |
| Port Size: | 100 |
| Media: | Gas |
| Temperature of Media: | High Temperature |
| Material: | Forged |
| Power: | Pneumatic |
| Pressure: | High Pressure |
| Structure: | Ball |
| Standard or Nonstandard: | Standard |
Quick Details
Specifications

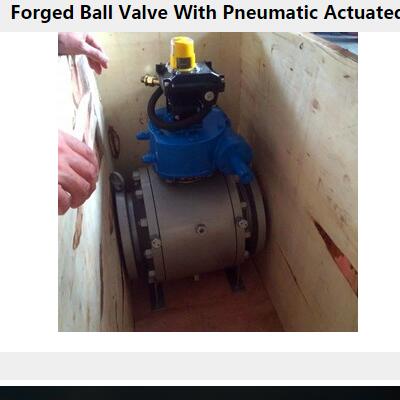

Forged Ball Valve with Pneumatic Actuated
Product Details:
Valve Type: Forged Ball Valve with Pneumatic Actuated
Pressure Rating: Class 150～2500
Size: NPS 2"～56"
Material: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design and Manufacture: API 608, API 6D, BS 5351, ASME B16.34
Face-to-Face: ASME B16.10, API 6D
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: ISO 5208, API 6D
Operation Methods: Pneumatic Actuated (Pneumatically Operated, Air Actuated)
Manual, Worm Gear, Electric Actuator, Pneumatic Actuator, Gas over Oil Actuator are also available
