| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | ISO9001:2008 |
| Voltage: | 380V/3PH/50HZ |
| Model Number: | LNXG |
| Brand Name: | Linuo |
| Place of Origin: | China (Mainland) |
| Type: | Freeze Drying Equipment |
| Condition: | New |
| Capacity: | 15-500m3/min |
Quick Details
Specifications
Type: Blower Purge Regenerative Desiccant Air Dryer
Rated Inlet Temperature:≤40°C
Inlet oil content:≤0.01ppm
Outlet Pressure Dew Point: -40°C(-70°C is optional)
Rated Working Pressure:0.7MPa-1.0Mpa
Desiccant:Activated Aluminum or Molecular sieve
Pressure Drop:≤0.02MPa
Control Model:PLC
Regeneration Way:Heated regenerative
Regeneration Air Loss:≤2%
Cycle Period:8hours
Power Supply: 380V/1PH/50HZ(Other power can be customized)
Capacity:15-500m3/min
Product Characteristic :
1.Using the ambient air to heat the regenerative desiccant
2.No air loss while heating
3.If the blower occur some problem then automatically change into heated type,the dryer continue to work.
4.the dew point is stable,the pressure dew point is low and the air loss is low
5.Adopt the high efficiency desiccant
6.High guad IP44 degree
7.Automatic pressurize function can prolong the desiccant working life
8.Efficient and reliable spare parts

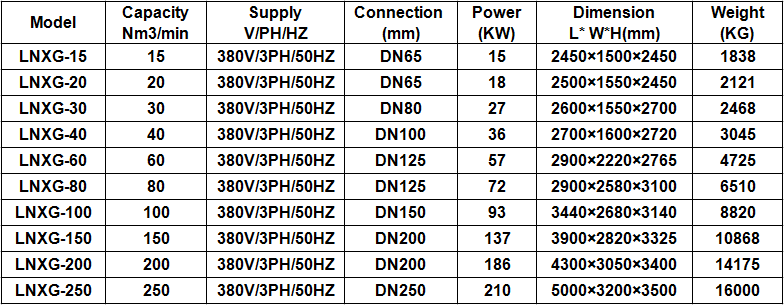

Specifications as follows:
