2X2B OPTICAL SWITCH Features



Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching



2X2B OPTICAL SWITCH Applications



·        Optical Signal Switching and Routing

·        Optical Network Protection and Restoration

·        Optical Network Monitoring

·         Video Distribution

·         Instrumentation Resource Sharing

·         Military Communications



Parameters		OSW-2x2B
Wavelength Range	nm	650～1310	1260～1670
Testing Wavelength	nm	650/780/850/980/1064/1310	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.6,Max:1.0	Typ:0.5,Max:0.8
Return Loss	dB	≥30	≥50
Crosstalk	dB	≥35	≥50
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power supply	v	3.3 or 5.0
Lifetime	Cycle	≥107
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operation Temperature	℃	-40～+85
Storage Temperature	℃	-40～+85
Weight	g	16
Dimension	mm	(L)27×(W)12.6×(H)8.5(±0.2)



 Route states





Pins

Optical Path

Electric Drive

Sensor Status

2x2B

1

5

6

10

3－4,7－8

2－3,8－9

Latching

P1--P3

N/A

N/A

GND

+5V

OPEN

CLOSE

P1-P4/P2-P3

+5V

GND

N/A

N/A

CLOSE

OPEN

Non-Latching

P1--P3

N/A

N/A

N/A

N/A

OPEN

CLOSE

P1-P4/P2-P3

+5V

N/A

N/A

GND

CLOSE

OPEN



Electrical parameters



		Voltage	Current	Resistor
5V	Latching	4.5~5.5	36~44mA	125?
5V	Non-Latching	4.5~5.5	26~32mA	175?
3V	Latching	2.7~3.3	54~66mA	50?
3V	Non-Latching	2.7~3.3	39~47mA	70?

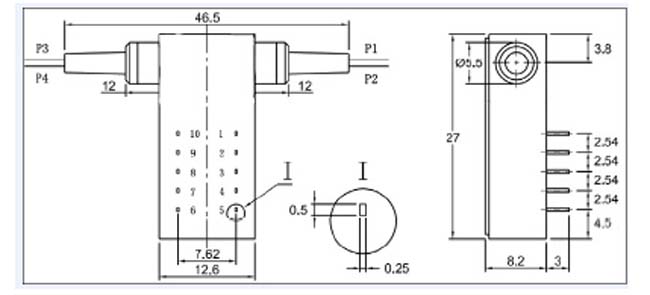

Dimensions



Ordering Information:OSW-2x2B-A-B-C-D-E-F-G



A	B	C	D	E	F	G
Mode	Wavelength	Voltage	Control Model	Fiber Diameter	Fiber Length	Connector
SM:9/125um M5:50/125um M6:62.5/125um	85:850nm 13:1310nm 14:1490nm 15:1550nm 162:1625nm 165:1650nm 13/15:1310/1550nm	3:3v 5:5v	L:Latching N:Non-Latching	25:250um 90:900um 20:2.0mm 30:3.0mm	05: 0.5m 10: 1.0m 15: 1.5m	OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC



We Provide:

FIBER OPTICAL SWITCH, MECHANICAL OPTICAL SWITCH,

MEMS OPTICAL SWITCH, SM MM OPTICAL SWITCH

MINI OPTICAL SWITCH, MAGNETO-OPTICAL SWITCH







CORERAY Optical Communication Co.,Ltd.Is a highly professional and Fast-developing company for optic components and systems. Our factory is Located in beautiful green city, Nanning of China. these years,CORERAYIs always devoted to Achieve No.1 Service, No.1 Quality and Competitive price for the clients. All CORERAY's products are designed and tested to meet the Standards of Telcordia Compliance. by this time, we have a perfect Service system and quality assurance system All components enjoy Extremely High stability and reliability.

CORERAYProducts include Mechanical Optical Switch, PLC Splitter, Coupler, WDM, etc.



Please contact us to get the actual unit price, and also welcome to visit our website.
