| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 Year |
| Certification: | CE ISO SGS |
| Weight: | depends on the model and features of the ordered machine |
| Dimension(L*W*H): | depends on the model and features of the ordered machine |
| Power(W): | depends on the model and features of the ordered machine |
| Voltage: | 380V 50Hz |
| Model Number: | JN-XPZ Series |
| Brand Name: | KNM |
| Place of Origin: | China (Mainland) |
| Processing Type: | Paper Slitting and Rewinding Machine |
| Product Type: | Maxi paper roll |
| Condition: | New |
Quick Details
Specifications

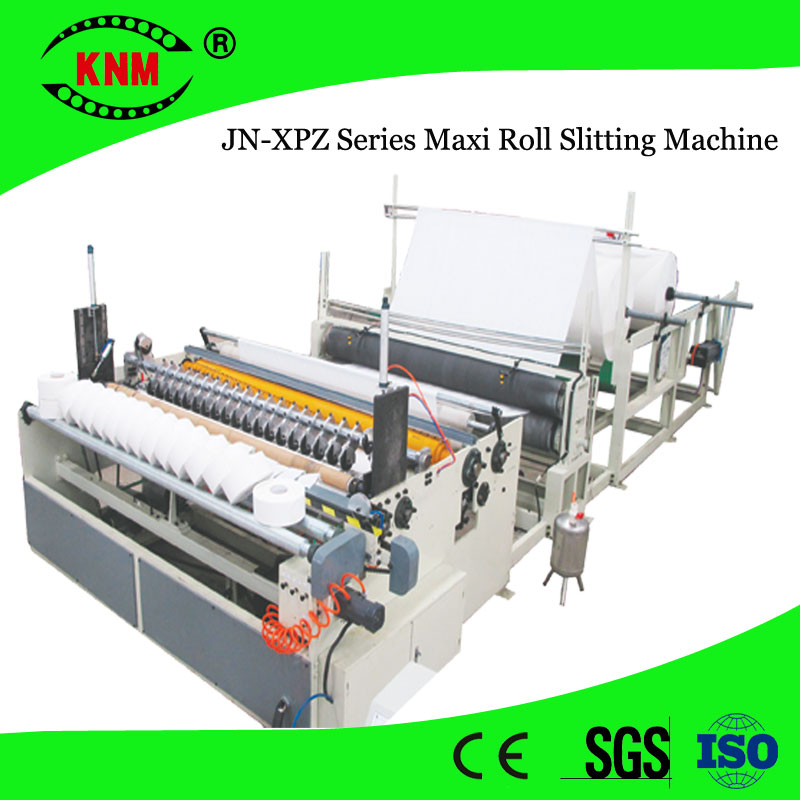

this maxi roll slitting machine produces jumbo roll toilet paper and towel roll. It has the function of embossing, perforation, slitting and rewinding,all of them can be finished on one time. this machine equipped with pneumatic jumbo roll lifter, pneumatic belt driving, tension adjustment and so on. Adopt air-shaft for rewinding.
Parameter of maxi roll slitting machine
Model |
1092 |
1575 |
2000 |
2200 |
2400 |
2600 |
2800 |
Width of raw material |
1200 |
1750 |
1950 |
2150 |
2350 |
2550 |
2750 |
Dia. of finished product (mm) |
90~1200(the tension can be adjustable) | ||||||
Dia. of raw material (mm) |
1100(please point other specification) | ||||||
Inner dia. of core of raw material |
76.2 mm(please point other specification) | ||||||
Distance of perforation (mm) |
90~160mm | ||||||
Processing of capacity |
100~200m/min | ||||||
Rewinding |
Air shaft (one piece) | ||||||
Embossing |
Single embossing,double embossing,steel to steel embossing | ||||||
Bottom roller of embossing |
Felt roller, wool roller, rubber roller. | ||||||
Unwinding stand |
1-3 layer(please point the number of layers) | ||||||
Embossing unit |
Steel to rubber | ||||||
Pneumatic system |
3 air compressor,Min. Pressure 5kg/cm2 PA(prepare by clients) | ||||||
Power |
4.5-11 kw(380V 50HZ) | ||||||
Overall size (mm) (LXWXH) |
6200x2600x1800~6200x4000x1800 mm | ||||||
Weight |
1800~4800kg | ||||||
Option (pay by customer ) |
Customize service | ||||||
Embossing unit |
Single embossing, double embossing, steel to steel embossing | ||||||
Bottom roller of embossing |
Felt roller, wool roller, rubber roller | ||||||
Unwinding stand |
1-3layer | ||||||
Edge embossing |
Need to order | ||||||
Calendaring unit |
Steel to steel, steel to rubber | ||||||
Trimming unit |
Vacuum adsorption trimming 1.5KW | ||||||
Edge Trimming and sealing |
Need to order | ||||||
Driving system |
Frequency control | ||||||
Lamination |
Glue Laminating | ||||||
