| Classification: | Laboratory Centrifuge |
|---|---|
| Place of Origin: | China (Mainland) |
| Model Number: | BK-CDL7M |
| Brand Name: | BIOBASE |
| Max. Speed: | 7000rpm |
| Max. RCF: | 11900xg |
| Max.Capacity: | 2400ml*6 |
| Net Weight(kg): | 620kg |
Quick Details
Specifications

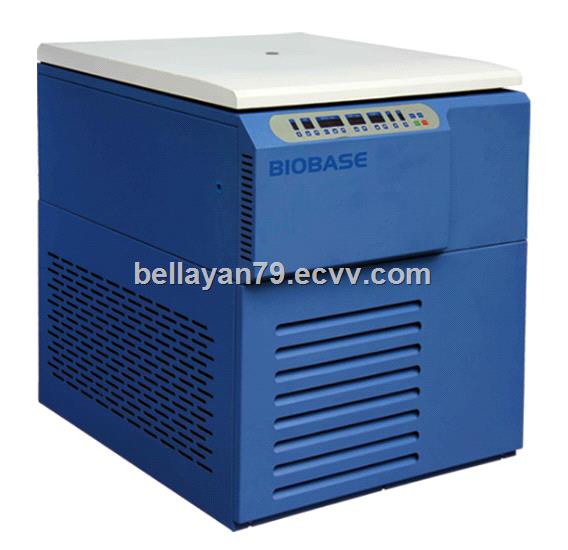

Biobase Large capacity Centrifuge for Blood bags BK-CKL7M
Features:
1. Microprocessor control, digital display with he temperature, time and speed.
2. Brushless motor, free maintenance, speed up and down quickly.
3. Automatically electric lid lock, over speed, over temperature and imbalance protection.
4. Stainless steel centrifugal chamber and lid.
Rotors:
Rotors for BK-CDL7M:
Rotor No. |
Rotor |
Speed |
RCF |
Capacity |
No.1 |
Swing Rotor (Round cup) |
4000rpm |
5530×g |
6*2400ml |
Rotors for BK-DDL6:
RotorNo. |
Rotor |
Speed |
RCF |
Capacity |
No.1 |
Swing rotor |
4000rpm |
4060×g |
4*1000ml |
Adapter |
4000rpm |
4060×g |
37*5ml | |
Adapter |
23*7ml(with cover) | |||
Adapter |
14*15ml | |||
Adapter |
7*50ml | |||
Adapter |
5*50ml(sharp-bottom tube) | |||
Adapter |
4*70ml | |||
Adapter |
3*100ml | |||
Adapter |
1*500ml |
Rotors for BK-DL6MB:
RotorNo. |
Rotor |
Speed |
RCF |
Capacity |
No.1 |
Swing Rotor (Round cup) |
4200rpm |
5100×g |
6*1000ml |
Adapter |
4200rpm |
5100×g |
37*5ml | |
Adapter |
23*7ml(with cover) | |||
Adapter |
14*15ml | |||
Adapter |
7*50ml | |||
Adapter |
5*50ml(sharp-bottom tube) | |||
Adapter |
4*70ml | |||
Adapter |
3*100ml | |||
Adapter |
1*500ml | |||
Swing round elliptic cup |
4200rpm |
5100xg |
6*1200ml |
Parameters:
Model |
BK-CDL7M |
BK-DDL6 |
BK-DL6MB |
Max. Speed |
7000rpm |
6000rpm |
6000rpm |
Max. RCF |
11900×g |
6600×g |
6600×g |
Max.Capacity |
2400ml*6 |
1000ml*4 |
1200ml*6 |
SpeedAccuracy |
±20rpm | ||
Temp.Range |
-20℃~40℃ | ||
Temp. Accuracy |
±1 °C | ||
Refrigeration Function |
Yes |
Yes |
Yes |
Timing Range |
1~99h59min | ||
Noise |
≤60dB |
≤55dB |
≤65dB |
Power Supply |
380V,50/60Hz |
AC220V/110V±10%,50/60Hz | |
ExternalSize(L*W*H)mm |
940*890*1000 |
800*675*830 |
750*850*940 |
PackingSize(L*W*H)mm |
1200*1050*1565 |
920*800*1320 |
1000*880*1350 |
Net Weight(kg) |
620 |
260 |
260 |
GrossWeight(kg) |
685 |
305 |
310 |
