| Dimensions (L x W x H) (mm): | 8700x3165x3800 |
|---|---|
| Model Number: | GKM50C |
| Brand Name: | SINOMACH |
| Place of Origin: | China (Mainland) |
| Gross Vehicle Weight: | 22000 |
| Condition: | New |
Quick Details
Specifications
Product
Features and Applicable Working Conditions
for

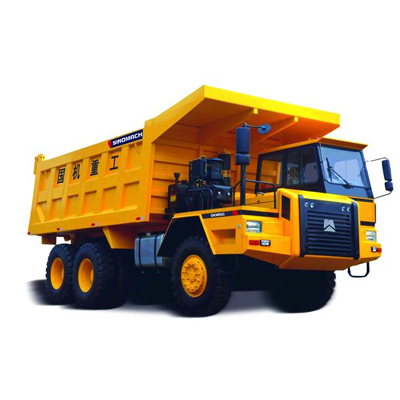

Non-road Dumper Truck GKM50C
I. Product features
the power transmission system matched with FAST Fuller Transmission and larger rate two-grade reducing mining axles, make it success for strong power and climbing capacity under the condition with heavy load.
Satisfying with severe working conditions, oil bath Type air filter and engineering tyre are equipped.
Optimal designed power system, professionally matched High power engineering low-speed large-torque engine, with reliability or Endurance, and higher power per liter and torque reserve coefficient.
Equipped with steady two pipeline braking system, it Has high performance in respect of service brake, parking brake and auxiliary Brake.
II. Applicable working Conditions
this series non-road dumper has improved its safety, Comfort, attendance rate and operability. It need lower operating costs Comparing with ordinary road dumper. It mainly applies to short-distance Transportation for engineering construction, such as surface mine, expressway, Building materials factory and so on.III. Major parameters
MAJOR PARAMETERS | |
Model |
GKM50C |
Kerb mass (kg) |
22000 |
Max. Load (kg) |
50000 |
Overall size (mm) |
8700x3165x3800 |
Cargo volume ( M3) |
24 |
Drive model |
6x4 |
Engine |
WD615 |
Max. Power |
247kW/2200rpm |
Max. Torque |
1350Nm/1100～1600rpm |
Transmission |
9/10JSD180 |
FAST 9/10JSD180 | |
Tyre size |
14.00-24 |
Drive axle/Ratio |
/11.125 |
Two-grade reducing/11.125 | |
Clutch |
430mm Diaphragm |
Max. Speed |
48km/h |
Min. Turning radius |
10m |
Ground clearance |
390mm |
Grade ability |
43% |
Electric system |
24V |
Brake form |
Energy storage air break braking |
Damping model |
Steel spring-assisted oil shock Absorber |
