| Condition: | New |
|---|---|
| Model Number: | D10 Micro whirly CIP rotary spray head |
| Brand Name: | KLY |
| Place of Origin: | China (Mainland) |
| Model: | D10 CIP rotary spray head |
| Material: | 316ss |
| Ball diameter: | 10mm |
| Operating pressure: | 1.5-3 bar |
| Spray angle: | 360 degree |
| Max. tank diameter: | 0.5m |
| Connection: | M6 thread, 8mm Welding |
| Feature: | Self-rotating, Double bearing design |
| Application: | cleaning and rinsing of small tank / kegs / machines |
| MOQ: | 5 pcs |
Quick Details
Specifications

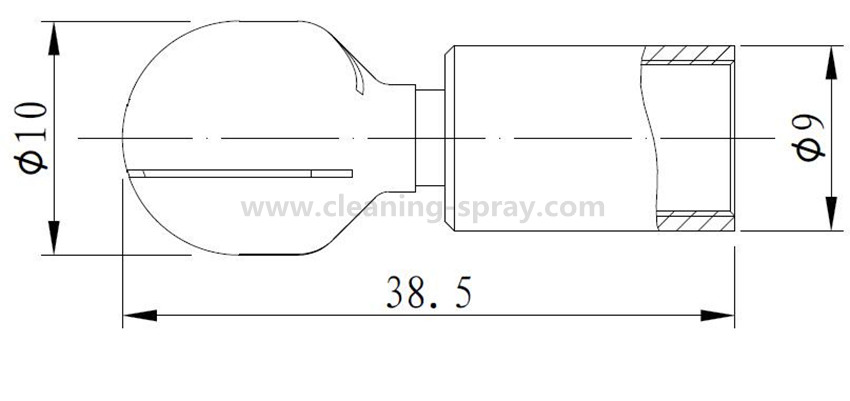

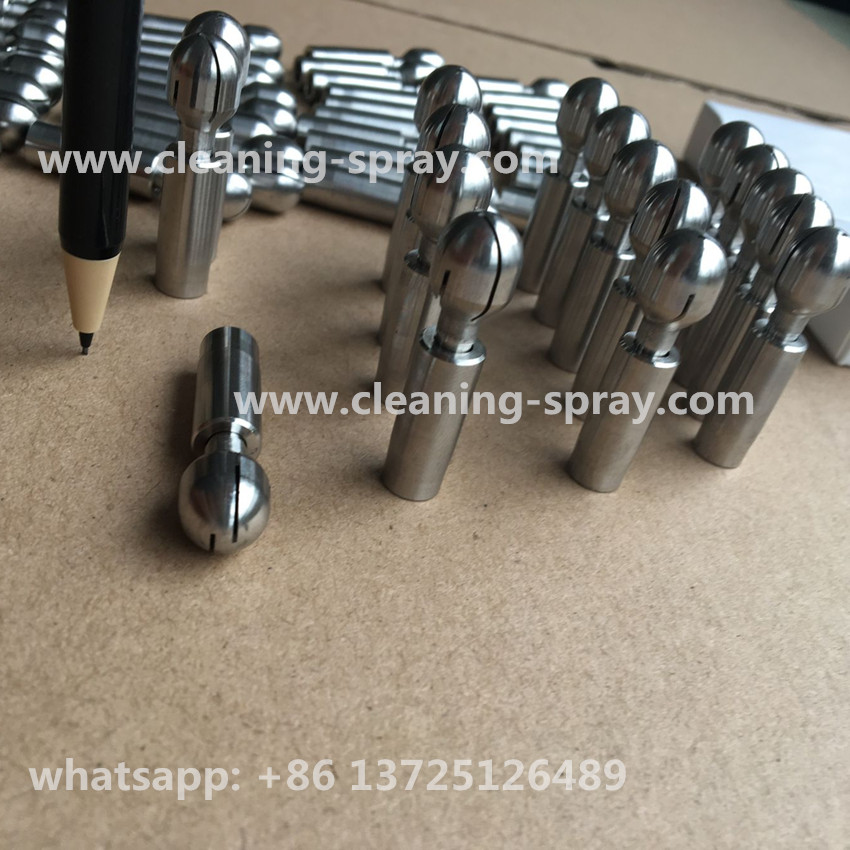

10mm Micro whirly cip rotary spray ball
| Model: | D10 rotary spray ball |
| Material: | 316L ss |
| Connection: | M6 thread, or welding |
| Bearing: | Double ball bearing |
| Pressure: | 1.5-3 bar |
| Diameter: | 10mm |
| Spray diameter: | 0.5m |
| Temperature: | 130° |
| Installation: | Operation in every direction is possible |
| Filtration: | Line strainer with a mesh size of 50 Mesh |
| Application: | Rinsing and cleaning of tank or equipment |
Design features :
1. Double bearing design with excellent rotation effects, and better stability and longer life
2. Self-cleaning self-lubricating design
3. 360 degree self-rotating cleaning nozzle
4. Low consumption of liquid, operating at low pressure
5. Driven and lubricated by the cleaning fluid
6. the compact and hygienic design meets requirements for use in CIP system
Application:
for rinsing and cleaning of vessels,tanks and machines
E.G: in food industry, beverage industry, pharmaceutical industry and chemical industry

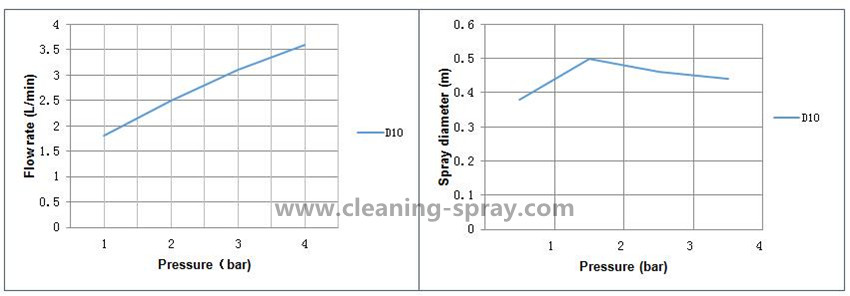

Performance Data
Company information
Guangzhou Cleaning-spray Equipment Co., Ltd is one of leading company in China specialized in manufacturing and selling tank cleaning nozzles, industrial spray nozzles and other spray product which are widely used in Pharmaceutical, Chemical, Food and Beverage and other industry. We can provide you with optimal solution according to your requirement.
Our Services
1. Reply your inquiry within 24 hours.
2. Best after-sale service. We accept return if the products is not right specification or damaged when arrived.
3. Payment Term:T/T, Western Union,Paypal
4. Delivery Term: China Post/ TOLL/ DHL/ UPS/FEDEX Express; Air/ Sea Transportation
5. All products can be customised.
FAQ
1,Can the products be customized?
Yes, we accept OEM, just send us your layout or actual sample, we can arrange production according your design.
2,Is the MOQ fixed?
for mass production orders,the MOQ cannot be lowered according to production requirements.for stock items,order quantity can be negotible.
3,how to order?
Please send one RFQ to us, our sales will confirm with you about the specification or other required things, then will send an official invoice to you via mail, which will be included the details of your order and bank information of our company.
4,how to pay?
We accept the payment via ESCROW, T/T (bank transfer) and Western Union, please inquire us about the details in advance.
5,how long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 7-14 working days.
6, how to Deliver?
by air, by sea or by express(Fedex, DHL, UPS, TNT etc)
7,how to return?
Acceptable to the returns when you receive the products because of the following reasons.
1. Product was damaged, lost or missed
2. Different specification from required one.
Before ordering, please select a suitable product for you. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping. Please note that you are responsible for the cost of shipping for returns not due to our error.
Exibition photos:
