| Type: | Roller |
|---|---|
| Structure: | Cylindrical |
| Place of Origin: | China (Mainland) |
| Number of Row: | Double Row |
| Seals Type: | open |
| Precision Rating: | P2, P4 |
| Model Number: | NN3036ASK.M.SP |
| Outside Diameter: | 200-450 mm |
| Bore Size: | 120-220 mm |
| Brand Name: | BEART |
| structure: | double row cylindrical |
| cage material: | brass |
| applications: | machine tools |
Quick Details
Specifications
A double row bearingsAre typically used in combination with double direction angular contact thrust bearings in applications where radial stiffness, high radial capacity and high precision support is required. They represent the ideal solution for a floating bearing location, since they are internally adjusting (floating).

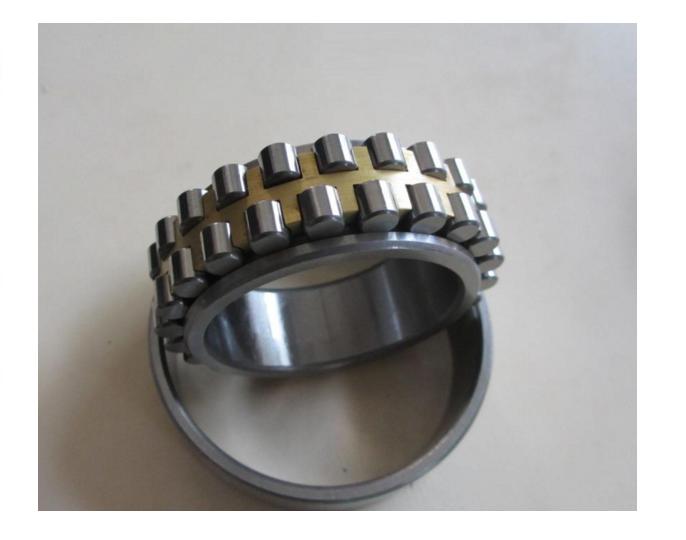

Double row cylindricalRoller bearings from Beart Enterprise Co., Limited have a high load carrying capacity because of the high number of cylindrical rollers in each row, and the exclusive optimized roller crown profile which results in the best load distribution. the cage is of solid machined brass construction, making this bearing suitable for rugged applications.
the bearing bore is tapered (taper =1: 12). the desired radial preload or radial clearance can be set by an axial adjustment on the conical shaft. Generally, the bearings should be mounted with zero clearance to a very slight preload.
Cylindrical rollers generally have lower limiting speed than ball bearings. They are the limiting factor when used in conjunction with spindle bearings on the work end of a spindle.
Bearing number Boundary dimensions mm Load rating kN Weight kg d D B C C0 NNU4934SK.M.SP 170 230 60 340 695 6.73 NN3034ASK.M.SP 170 260 67 450 800 12.50 NNU4936SK.M.SP 180 250 69 405 850 9.96 NN3036ASK.M.SP 180 280 74 570 1000 16.40 NNU4938SK.M.SP 190 260 69 405 880 10.40 NN3038ASK.M.SP 190 290 75 585 1040 17.30 NNU4940SK.M.SP 200 280 80 490 1040 14.70 NN3040ASK.M.SP 200 310 82 655 1200 22.20 NNU4944SK.M.SP 220 300 80 510 1140 15.90 NN3044ASK.M.SP 220 340 90 800 1460 19.10 NNU4948SK.M.SP 240 320 80 530 1200 17.10 NN3048ASK.M.SP 240 360 92 850 1560 31.60 NNU4952SK.M.SP 260 360 100 750 1700 29.70 NN3052ASK.M.SP 260 400 104 1060 2000 46.20 NNU4956SK.M.SP 280 380 100 765 1800 31.60 NN3056ASK.M.SP 280 420 106 1080 2080 49.70 NNU4960SK.M.SP 300 420 118 1040 2400 49.10 NN3060ASK.M.SP 300 460 118 1270 2400 68.80 NNU4964SK.M.SP 320 440 118 1060 2550 51.80 NN3064ASK.M.SP 320 480 121 1320 2600 74.20 NNU4968SK.M.SP 340 460 118 1100 2650 54.50 NN3068ASK.M.SP 340 520 133 1630 3250 99.30 NNU4972SK.M.SP 360 480 118 1140 2800 57.30 NN3072ASK.M.SP 360 540 134 1660 3350 104.00 NNU4976SK.M.SP 380 520 140 1430 3600 85.80 NN3076ASK.M.SP 380 560 135 1700 3450 110.00 NNU4980SK.M.SP 400 540 140 1500 3800 89.40 NN3080ASK.M.SP 400 600 148 2160 4500 143.00 NNU4984SK.M.SP 420 560 140 1530 4000 93.20 NN3084ASK.M.SP 420 620 150 2120 4500 150.00 NNU4988SK.M.SP 440 600 160 2040 5200 129.00 NN3088ASK.M.SP 440 650 157 2450 5100 172.00 NNU4992SK.M.SP 460 620 160 2120 5500 134.00 NN3092ASK.M.SP 460 680 163 2600 5400 197.00 NNU4996SK.M.SP 480 650 170 2360 6100 158.00 NN3096ASK.M.SP 480 700 165 2700 5850 206.00 NNU49/500SK.M.SP 500 670 170 2320 6100 162.00 NN30/500ASK.M.SP 500 720 167 2650 5850 214.00
Cylindrical roller bearingsCan be lubricated with either grease or oil.
