| Pressure: | Low Pressure |
|---|---|
| Standard or Nonstandard: | Standard |
| Power: | Diesel |
| Structure: | self-priming pump |
| Brand Name: | Genlitec |
| Application: | water transfer |
| Fuel: | Diesel |
| Usage: | Water |
| Model Number: | DWP150C |
| Place of Origin: | China (Mainland) |
| Engine: | DE192F(13HP) |
| Fuel consumption: | <280g.kw/h |
| Fuel tank capacity: | 5.5L(15L for option) |
Quick Details
Specifications

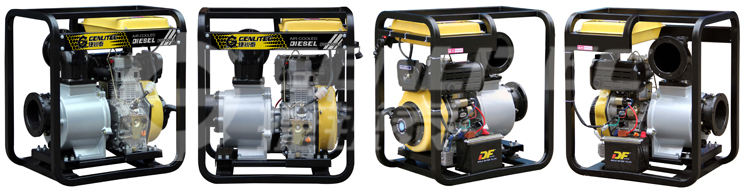

6inch diesel water pump for Aggriculture Irrigation
Please send your inquiry to me via Angela at genlitec doc com
Please send your inquiry to me via Angela at genlitec doc com
PRODUCT INTRODUCTION
*Powered by GENLITEC 4-stroke air cooled diesel engine
*Easy maintenance and wide application
*Full fram protection greatly reduces vibration
*Famous for sophisticated design and excellent performance
*Featured by easy starting, simple operation, low fuel consumption, a longer service life, low pollution, etc.
SPECIFICATION
Model |
DWP150CL(E) |
Diameter(mm) (inch) |
150(6" ) |
Max. Flow(m3/h) |
160 |
Max. Lift(m) |
18 |
Max. Suction lift(m) |
5 |
Rotational speed(rpm) |
3600 |
Engine model |
DE192F(E) |
Engine type |
Single-cylinder, vertical, four-stroke,air cooled |
Bore*stroke(mm) |
92*75 |
Displacement (L) |
0.498 |
Power (KW) |
9.2 KW/3600rpm |
Power (HP) |
13HP /3600rpm |
Fuel consumption rate(g.KW/h) |
<280 |
Compression ratio |
19 |
Lubrication system |
Pressure splash Type |
Engine starting system |
Recoil starter (Electric start as optional) |
Fuel oil model |
Summer:0#,Winter:-10# |
Lube oil model |
SAE10W-30 (above CD grade) |
Lube oil capacity (L) |
1.65 |
Fuel tank capacity (L) |
5.5 |
Net weight(kg) |
108 |
OPTIONAL CONFIGURATION
Handle & wheels / key start & battery / tube-frame / suction&delivery hoses
