| Type: | Ball |
|---|---|
| Structure: | Angular Contact |
| Place of Origin: | China (Mainland) |
| Number of Row: | Double Row |
| Seals Type: | open |
| Precision Rating: | P4 |
| Model Number: | 234707M.SP |
| Outside Diameter: | 60-62 mm |
| Bore Size: | 30-35 mm |
| Brand Name: | BEART |
| structure: | double row thrust ball bearing |
| thrust direction: | double direction |
| precision grade: | ABEC7 |
Quick Details
Specifications

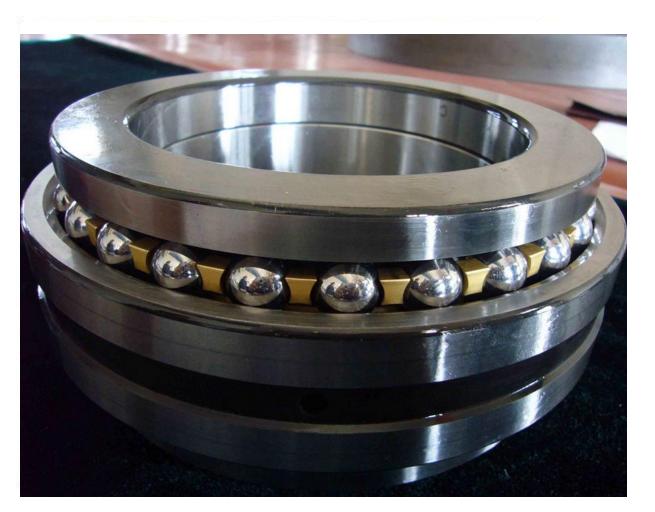

Double directionAngular contact thrust ball bearings are designed for use in machine tool spindles, in combination with cylindrical roller bearings. They are manufactured to precision tolerances. Double direction angular contact thrust ball bearings are designed to carry only thrust loads.
ChinaPrecisionDouble direction thrust ball bearing manufacturer Beart Enterprise Co., Limited. Precision angular contact thrust ball bearings from china, china best maker of precision double direction thrust ball bearing for machine tools. Qualified bearing from china.Chinaprecision thrust ball bearing maker, precision double direction bearing manufacturer from china, china top famous bearing supplier.
Bearing number Boundary dimensions mm Load rating kN Weight kg d D B C C0 234406M.SP 30 55 32 14.30 24.00 0.29 234706M.SP 32 55 32 14.30 24.00 0.27 234407M.SP 35 62 34 17.60 31.50 0.38 234707M.SP 37 62 34 17.60 31.50 0.35 234408M.SP 40 68 36 20.80 38.00 0.46 234708M.SP 42 68 36 20.80 38.00 0.43 234409M.SP 45 75 38 23.20 45.00 0.58 234709M.SP 47 75 38 23.20 45.00 0.54 234410M.SP 50 80 38 24.00 49.00 0.63 234710M.SP 52 80 38 24.00 49.00 0.58 234411M.SP 55 90 44 34.00 67.00 0.94 234711M.SP 57 90 44 34.00 67.00 0.88 234412M.SP 60 95 44 33.50 68.00 1.01 234712M.SP 62 95 44 33.50 68.00 0.94 234413M.SP 65 100 44 36.00 76.50 1.08 234713M.SP 67 100 44 36.00 76.50 1.01 234414M.SP 70 110 48 42.50 93.00 1.49 234714M.SP 73 110 48 42.5 93.00 1.36 234415M.SP 75 115 48 44.00 100.00 1.57 234715M.SP 78 115 48 44 100 1.43 234416M.SP 80 125 54 52 120 2.16 234716M.SP 83 125 54 52 120 1.98 234417M.SP 85 130 54 52 125 2.25 234717M.SP 88 130 54 52 125 2.07 234418M.SP 90 140 60 61 146 2.92 234718M.SP 93 140 60 61 146 2.71 234419M.SP 95 145 60 61 150 3.04 234719M.SP 98 145 60 61 150 2.83 234420M.SP 100 150 60 62 156 3.17 234720M.SP 103 150 60 62 156 2.95 234421M.SP 105 160 66 69.5 176 4.07 234721M.SP 109 160 66 69.5 176 3.73 234422M.SP 110 170 72 90 224 5.19 234722M.SP 114 170 72 90 224 4.79 234424M.SP 120 180 72 93 240 5.56 234724M.SP 124 180 72 93 240 5.14
DoubleDirection angular contact thrust ball bearings have a contact angle of 60° and are axially preloaded. the contact angle and the axial preload ensure good ball control, especially under the centrifugal forces with fast rotating spindles. these bearings are designed to accommodate high thrust loads. They have solid one piece machined brass cages which are ball guided.
