Product Features and Applicable Working Conditions

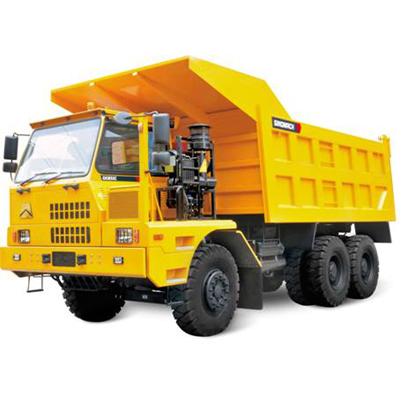

for Non-road Dumper Truck GKM65R

I. Product features

Equipped with position and backrest angle adjustable Spring seats, manual/electric integrated tilting system cab, can absorb Vibration from the ground and improve comfort for driving.

the power transmission system matched with FAST Fuller Transmission and larger rate two-grade reducing mining axles, make it success for strong power and climbing capacity under the condition with heavy load.

Satisfying with severe working conditions, oil bath Type air filter and engineering tyre are equipped.

Optimal designed power system, professionally matched High power engineering low-speed large-torque engine, with reliability or Endurance, and higher power per liter and torque reserve coefficient.

II. Applicable working conditions

the Product is equipped with right rudder cab from GKM65D, to adapt to some Countries are driving on the left. It mainly applies to short-distance Transportation for engineering construction, such as surface mine, expressway, Building materials factory and so on.

III. Major parameters

MAJOR PARAMETERS
Model	GKM65R
Kerb mass (kg)	23000
Max. Load (kg)	65000
Overall size (mm)	8750x3165x3800
Cargo volume ( M3)	25
Drive model	6x4
Engine	WD615
Max. Power	279kW/2200rpm
Max. Torque	1500Nm/1100～1600rpm
Transmission	9/10JSD180
	FAST 9/10JSD180
Tyre size	14.00-24
Drive axle/Ratio	11.125
	11.125
Clutch	430mm Diaphragm
Max. Speed	48km/h
Min. Turning radius	10m
Ground clearance	390mm
Grade ability	38%
Electric system	24V
Brake form	Energy storage air break braking
Damping model	Steel spring-assisted oil shock Absorber
